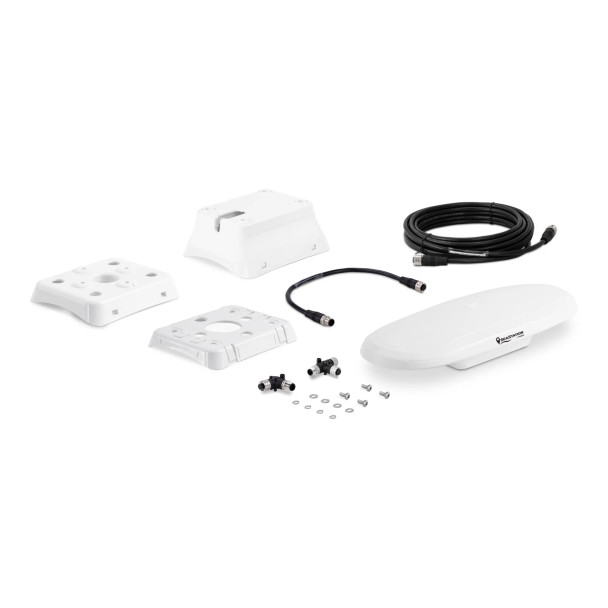

Dometic Optimus EPSK1630 SeaStation & SeaWays V200 Flush-Mount Kit adds GPS-based vessel positioning and autopilot capability to a compatible Optimus 360 system. SeaStation can automatically control vessel position, heading, or both, while SeaWays adds integrated autopilot functionality for cruising.
GPS Positioning
Hold position, heading, or both without deploying a physical anchor.
SeaWays Autopilot
Integrated autopilot functionality using the Optimus 360 system and CANtrak display.
Optimus 360 Integration
Designed as an upgrade for compatible, fully commissioned Dometic Optimus 360 systems.
SeaStation Operating Modes
SeaStation uses GPS position and heading information together with the Optimus 360 steering and propulsion controls to automatically manage the vessel.
Heading Mode
SeaStation automatically controls the vessel's heading while allowing its position to drift naturally with wind and current. This can be useful for applications such as drift fishing where maintaining orientation is more important than remaining over one exact GPS position.
Position Mode
SeaStation automatically maintains the vessel near a selected GPS position while allowing the heading to move freely. This is useful when holding over a reef, wreck, fishing spot, or other target area.
Position + Heading Mode
Position Mode and Heading Mode can be engaged together, allowing SeaStation to control both the vessel's GPS position and heading. This provides the greatest level of automatic station keeping.
Key Features
Maintain position without deploying a physical anchor.
Position, heading, or combined position and heading control.
Autopilot functionality integrated into the Optimus 360 platform.
System functions are accessed through the Optimus 360 controls and display.
Useful for holding over structure, managing drifts, and maintaining vessel orientation.
EPSK1630 is Dometic's SeaStation and SeaWays V200 flush-mount kit.
Compatibility note: SeaStation is an enhancement to Optimus 360. The vessel's Optimus 360 system must be fully installed, commissioned, and compatible before SeaStation is added.
Specifications
System & Application Details
| Kit Configuration | SeaStation + SeaWays V200 |
| Mounting Configuration | Flush Mount |
| Steering Platform | Compatible Dometic Optimus 360 systems |
| SeaStation Functions | Position Mode, Heading Mode, and combined Position + Heading Mode |
| Autopilot | Dometic SeaWays |
| Installation | Authorized Dometic Optimus dealer or OEM boat builder |
Optimus components are application-specific. Compatibility should be confirmed against the vessel's existing Optimus 360 system, engines, controls, software, and network configuration before installation.
How Optimus Works
Dometic Optimus is an electronically controlled marine steering and vessel-control platform. Steering and joystick commands are communicated electronically through the Optimus system rather than relying solely on a conventional mechanical connection between the helm and engines.
Operator Input
Steering-wheel and joystick commands are sent electronically into the Optimus control system.
Electronic Control
Optimus processes those commands and coordinates the appropriate steering and vessel-control components.
SeaStation Integration
SeaStation adds GPS position and heading information. Optimus 360 can then use steering, shift, and throttle control to automatically manage the vessel's position and heading.
Because Optimus systems are configured to specific boats, engines, controls, and steering components, replacement parts and upgrades should be matched to the existing system rather than selected by appearance alone.
Resources
Installation, commissioning, setup, and operating information should always be referenced against the current Dometic documentation for the vessel's specific Optimus configuration.
Installation, commissioning, operation, troubleshooting, and SeaStation mode information.
Operating and setup information for Dometic SeaWays autopilot.
Current manufacturer information for the EPSK1630 SeaStation and SeaWays V200 flush-mount kit.
Dealer & Service
Dometic Optimus Support in Southern California
Seatech Marine Products provides Dometic Optimus parts, sales, system assistance, and service support for customers in Southern California, including the San Diego area.
Located in Southern California?
Contact Seatech Marine Products for help identifying Optimus components, confirming compatibility, or discussing local parts and service support.
Outside Southern California?
Dometic Optimus products are supported through Dometic's authorized dealer network. Use Dometic's dealer locator to find an Optimus dealer or service provider in your area.
