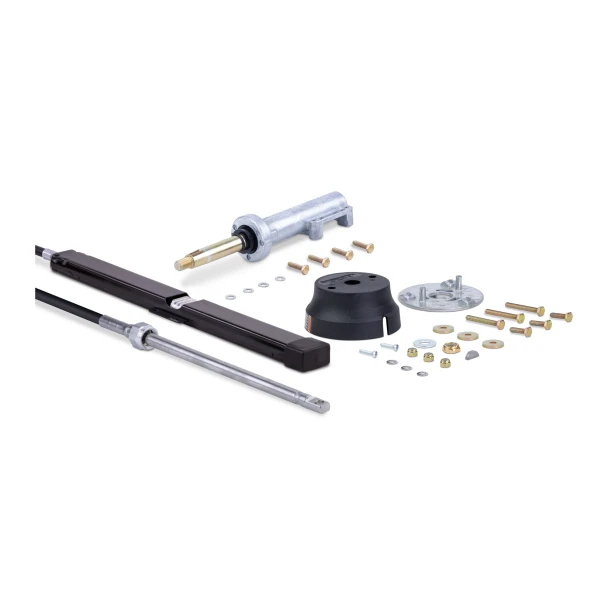

SeaStar SS14120 Back Mount Rack Steering Kit, 20 ft
Dometic SeaStar part number: SS14120
A 20-foot back-mount rack-and-pinion steering kit with four turns lock-to-lock. The helm and cable install from behind the dash for suitable power-assisted steering applications.
The documented kit includes the helm, cable assembly, 90-degree bezel and mounting hardware. The steering wheel is separate.
Dometic recommends No FeedBack steering for non-power-assisted outboard applications. This traditional system should not be selected as a universal replacement solely from its cable length.
Specifications
| Part number | SS14120 |
|---|---|
| Cable length | 20 ft |
| Steering system | Rack and pinion, single cable |
| Turns lock-to-lock | 4 |
| Wheel shaft | 3/4 in round tapered |
| Maximum wheel diameter | 16 in |
| Installation scope | Single-station replacement for the boat manufacturer's original steering installation |
| Documented application | Specified power-assisted sterndrive applications; select the complete system for the vessel and drive |
Components in this steering kit
- SH5210P Helm
Component listed in this steering-kit arrangement.
- SSC13420 Cable assembly
20-foot cable reference listed for the kit family.
- SB39526P 90-degree bezel
Bezel reference listed in the kit arrangement.
Manufacturer manuals and downloads
- Dometic Ride & Handling catalog (PDF, 130.5 MB)
Revision 04.15.22 (2022). Family reference. Manufacturer family catalog reference; not a part-specific installation manual or universal fitment statement. PDF pages 8, 13, 15, 24, 36.
- Dometic Back Mount Rack product leaflet (PDF, 325 KB)
Family reference. Non-NFB Back Mount Rack family.
