Description

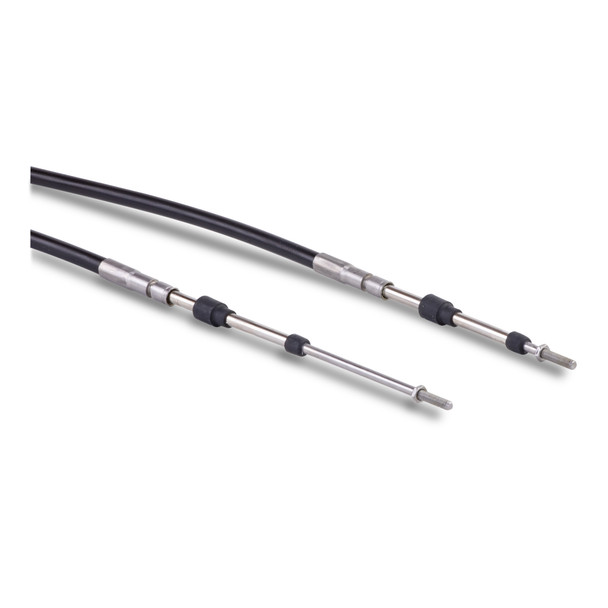

SeaStar CCX63306 XTREME 3300/33C Control Cable, 6 ft
Dometic SeaStar part number: CCX63306
A 6-foot universal XTREME 3300/33C cable for mechanical throttle or shift controls accepting 10-32 threaded cable ends.
The cable has 3 inches of nominal travel and a 4-inch minimum bend radius. These dimensions help distinguish the 3300/33C connection from the larger 4300/43 and 6400/64 cable families.
Clamp-style conduit fittings and threaded terminals are provided at both ends. Its splined core is designed to reduce friction and lost motion, including in long or multi-station cable runs.
Specifications
| Part number | CCX63306 |
|---|---|
| Cable length | 6 ft |
| Cable family | 3300 / 33C / 3300CC |
| Terminal threads | 10-32 at both ends |
| Conduit fittings | Clamp at both ends |
| Construction | XTREME splined core |
| Outer casing | Black HDPE |
| Nominal travel | 3 in |
| Minimum bend radius | 4 in |
Related parts and system references
- CA28020P Clamp and shim kit
3300/33C conduit attachment option.
- 31126 Quick-release ball joint
3300/33C cable connection option.
- 177030 DS throttle unit
Uses CCX633-family cables in the documented inboard/sterndrive dual-station layout.
Manufacturer manuals and downloads
- Dometic Ride & Handling catalog (PDF, 130.5 MB)
Revision 04.15.22 (2022). Family reference. Manufacturer family catalog reference; not a part-specific installation manual or universal fitment statement. PDF pages 150, 151, 161, 162, 163, 164, 173, 184, 187, 189, 190, 191, 194, 195, 196, 198, 199, 200, 201.
