NHK MEC KE453 KE4+ Single Station Dual Engine Kit - Chrome w/Stainless Handles

NHK MEC KE453 KE-4+ Single Station Dual Engine Kit - Chrome Control Head with Stainless Steel Handles

The NHKMEC KE-4+ KE453 Kit is an electronic engine control system for dual mechanical shift and throttle engines. The smooth shifting between gears and the throttle response makes this system a must have upgrade over older mechanical controls. The KE-4+ electronic engine control system is also perfect for a new installation in leisure boats to commercial fishing vessels.

Why You Should Consider Purchasing the KE-4+ Electronic Engine Control System:

• Great for new installations or replacing mechanical controls
• Will save your engine's transmission with smooth gear shifting
• Adds immense value to the one of the most important functions of your marine vessel
• You won't want to go back to mechanical engine controls!

Features:

• The easiest and quickest to install electronic engine control system
• Additional Set-up tool is not required
• Up to 4 Stations - plus 1 handheld
• Mechanical Back-Up
• Neutral warm up function
• Start in gear protection
• Shift and throttle actuator are in the same unit
• Compact and ergonomic control head

Specs:

• 12 or 24v DC - Input Voltage
• 16A peak/ 5A typical Current consumption
• Operating thruster 147N
• Maximum Workload 343N
• Shift Travel 40mm Max each (fwd, rev) - adjustable
• Throttle Travel - 80mm Max - adjustable

What Comes In the KE453 Kit:

• 1x NM1053-00 Dual Engine Chrome Control Head with Stainless Handles
• 2x NM1475-00 KE4+ Control Unit 12/24V
• 2x NM0183-00 KE4+ Actuator
• 1x NM0647-09 T-Harness (R/C-1) with Terminators
• 1x NM0647-12 T-Harness (Port) with Terminator
• 1x NM0647-13 T-Harness (Stbd) with Terminator
• 4x NM0414-28 Power Harness - 5M
• 1x Control Head Buzzer 12v or 24vDC

What Else Is Needed?

• 2x Bus Harness (NM0649-xx) Sold in lengths 2m-30m (in 2m intervals)
• 4x Engine Control Cables (CCX633xx)

You May Also Want To Consider:

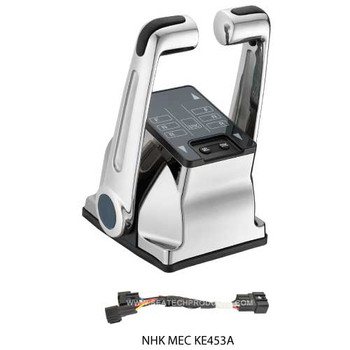

• KE453A - Add a Station kit, up to 4 stations

NHK MEC KE-4+ CONTROL HEAD DIMENSIONS:

Downloads Section:

NHK MEC KE4+ Instruction Manual [PDF]

NHK MEC KE4+ Instruction Manual (Spanish version) [PDF]

NHK MEC KE+ Electronic Engine Control Brochure [PDF]

How to Purchase a Complete KE4+ Twin Engine System [LINK]

How to Determine Which KE+ Series is Right for your Boat [LINK]

CAUTIONS: Bus harness must not exceed 80m in total length.

A New Direction for the KE+ Line:

Seatech Marine Products, Inc. is proud to be the official North American distributor for NHK MEC KE+ electronic engine control systems. Formally distributed by SeaStar Solutions, the KE-4a and KE-4+ systems are one of the most well established and reliable engine controls the marine industry has seen. The older generation controls may also be commonly known as but not limited to: TeleflexMorse, Morse, Teleflex, SeaStar KE4P13. Our mission statement and vision is to educate, provide competitive pricing, and ensure our customers that we can meet their demands.

Contact us: Speak with our KE-4+ expert today: Contact Page.
