Description
SeaStar HF6010 ORB 2nd Helm Fitting Kit for -3 Helms/Cylinders Inboard
Dometic SeaStar part number: HF6010
Dometic SeaStar HF6010 is the fitting kit specified for adding a second station or autopilot to an inboard or sterndrive system using 3/8-inch outside-diameter copper tubing. The guide specifies ORB helms; it references HF5502 for the corresponding NPT-helm arrangement.

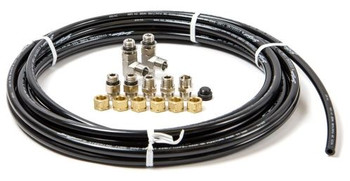

This copper-tube application is distinct from the SeaStar-hose application listed for HF6007. Use the HF6010 diagram and component table to match the existing hydraulic line type and connections.
Specifications
| Manufacturer part number | HF6010 |
|---|---|
| Fitting or kit type | Second-station/autopilot kit for copper-tube systems |
| Manufacturer kit quantity | One manufacturer kit; component counts below |
| Hydraulic line type | 3/8-inch OD copper tubing only |
| Helm port type | ORB; NPT systems use HF5502 |
Kit contents
| HF5526 — 3/8-inch tube nut | 12 |
|---|---|
| HF6009 — ORB-to-tube connector | 2 |
| HF5528 — 1/4-inch NPT-to-tube autopilot adapter | 3 |
| HF5530 — Three-way 3/8-inch tube tee | 2 |
| HA5432 — Non-vented filler plug | 1 |
Manufacturer manuals and downloads
- Dometic Marine Steering Selection Guide (PDF, 39.6 MB)
2027 edition · Revision 32. Fitting chart and applicable kit diagrams: PDF pages 114, 119. Match the connection type and fitting layout to the manufacturer drawing.
