Phasor Marine K4-30.0KW Standard Series Boat Diesel Generator

(No reviews yet) Write a Review
SKU:
K4-30.0KW
UPC:
K4-30.0KW
Condition:
New
  • Phasor Marine K4-30.0KW Standard Series Boat Diesel Generator
  • Phasor Marine K4-30.0KW Standard Series Boat Diesel Generator
  • Phasor Marine K4-30.0KW Standard Series Marine Diesel Generator (K4 - 30.0)
For Pricing Use the "Request Special Pricing" Form Below
Built to Order - Typical Lead Time is 30 Days

Description

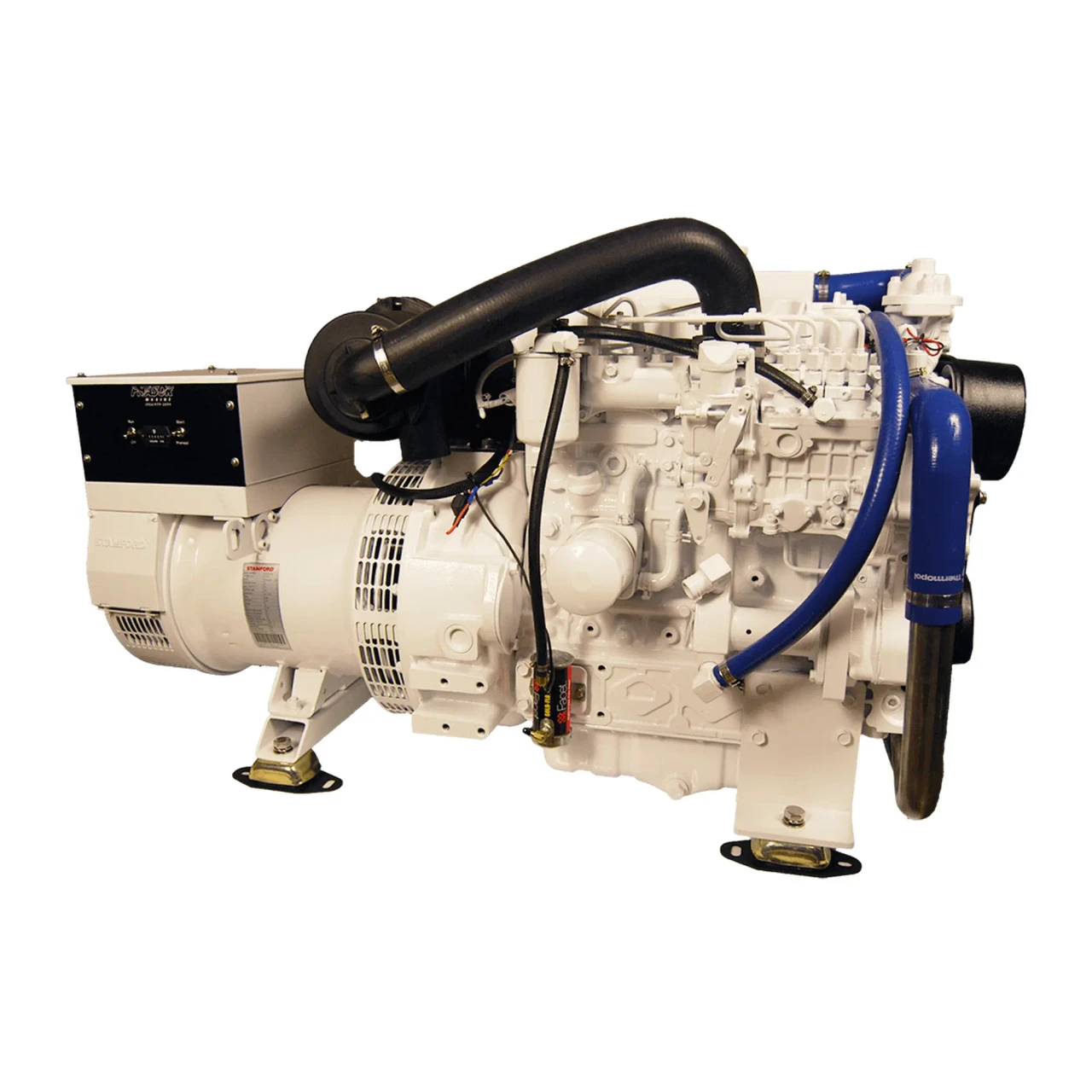

PHASOR MARINE 30.0kW Marine Diesel Generator - K4-30.0KW

The Phasor Marine 30.0Kw generator is one of the most popular marine diesel gensets for boats 50' - 70'. The unit outputs 250 amps on 120VAC at a low 1,800 RPM operating speed; powered by a Kubota V3300-E4BG 4 cylinder diesel engine.

To receive Special Pricing on this unit, please click on the Request Special Pricing form below.


Product Features:

  • Engine Features
    • Kubota Diesel Engine: V3300-E4BG - 4 Cylinder - 202.48cu.in. displacement - Naturally Aspirated/IDI
    • Single Bearing Direct Coupled Brushless Generator
    • Safety shutdown system for high coolant temp or low lube oil pressure
    • Air Intake Cleaner / Silencer
    • Stainless Steel Exhaust Elbow Cast
    • Stainless Steel 4-Point isolation mounts
    • Belt Guard
    • Awl-Craft 2000 Urethane Finish - Long Lasting Gloss - Color Retention
  • Electrical Features
    • +/- 1% Solid-state voltage regulation
    • Single series circuit control system with no printed circuit boards - tinned wiring
  • Fuel System Features
    • Electric Fuel Transfer Pump
    • Secondary 5 Micron Fuel Filter
    • USCG Approved fuel lines
    • Self Bleed Fuel System
  • Oil System Features
    • Spin-on lube filter
    • Forged Brass Oil Drain Valve with Safety Lock
  • Cooling System Features
    • Gear Driven Raw Water Pump
    • Molded blue silicone water hoses with Stainless Steel AWAB Clamps
    • Freshwater Double Pass Heat Exchanger - zinc anode inside

Product Specifications:

  • Dimensions
    • (LxWxH) 53.0"x 24.0"x 32"
    • W/ Hard Sound Enclosure 57"x 28" x 34"
  • Weight: 1290lbs
  • Electric End: Newage
  • Operating Speed: 1,800 RPM (Less wear and tear compared to a 3,600RPM Genset)
  • Output Volts: 120/240
  • Output Amps: 250/125
  • Output Watts: 30,000
  • Phasor Marine 5 Year Limited Warranty

Optional upgrades:

  • Remote Panels
    • w/ 10 ft extension harness 101-0061
    • w/ 20 ft extension harness 101-0062
    • Remote Start/Stop W/O hour meter w/ 20ft harness 101-0092
    • Remote Start/Stop w/ Four Gauges and 20ft harness 101-0060
    • Relay Pak needs to be used with harnesses over 20ft 101-0333
  • Other Parts

Downloads & Resources:

View AllClose

Warranty Information

Seatech Marine Products is an authorized dealer for Phasor Generators. This has a limited 5 year warranty. Please see below under Downloads for full warranty information.
