SeaStar DK4420 Jack Plate Wire Harness

(No reviews yet) Write a Review
SKU:
DK4420
Condition:
New
$159.97
Check Stock - Button Below

Description

OEM SeaStar Jack Plate Replacement Part

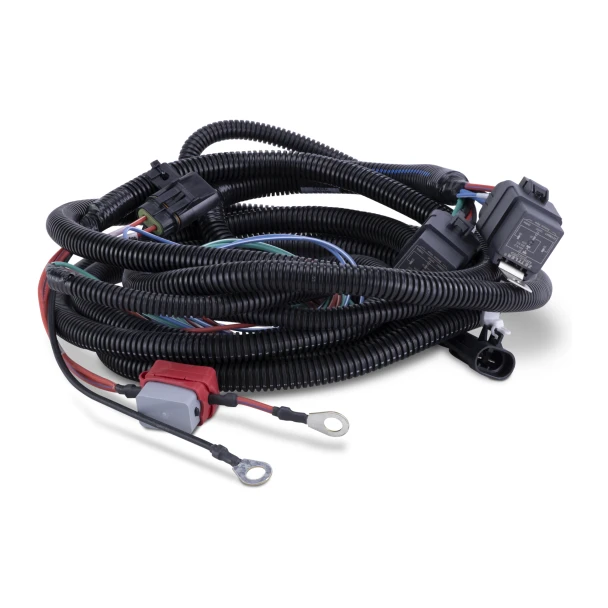

Dometic SeaStar DK4420 Jack Plate Wire Harness

The SeaStar DK4420 is the OEM replacement wire harness for compatible SeaStar hydraulic jack plate systems. It restores the electrical connection between the boat's power and control circuit and the jack plate actuator, and Dometic literature identifies the basic rocker switch as included with the harness.

Genuine Dometic SeaStar Part Number DK4420 Basic Rocker Switch Included Authorized Dometic Dealer
Tech Support Check Stock Shipping Quote About Us
Part Number DK4420
Product Type Jack Plate Wire Harness
Application SeaStar Hydraulic Jack Plates
Included Harness and Basic Rocker Switch
Fitment note: DK4420 is a replacement electrical harness for compatible Dometic SeaStar Standard and Xtreme hydraulic jack plates. Confirm the existing harness or jack plate model before ordering. This is not the DK4220 SmartStick and gauge kit or the DK4320 gauge and harness kit.

Key Features

  • Genuine Dometic SeaStar replacement component
  • Designed for compatible SeaStar hydraulic jack plate systems
  • Restores power and control wiring to the jack plate actuator
  • Useful when replacing a damaged, corroded or missing original harness
  • Basic rocker switch is included with the jack plate harness
  • Suitable for new replacement installations and system repairs

Compatibility and Identification

  • Compatible with applicable Dometic SeaStar Standard hydraulic jack plates
  • Compatible with applicable Dometic SeaStar Xtreme hydraulic jack plates
  • Not intended for manual jack plates
  • Does not include a SmartStick position sensor or height gauge
  • Older Detwiler and D3000-series systems may require a different harness
  • Match the replacement part number and connector layout before installation

What Is Included

  • One Dometic SeaStar DK4420 jack plate wire harness kit
  • Basic rocker switch

A SmartStick sensor, jack plate height gauge, actuator and jack plate assembly are not included.

Product Specifications

Manufacturer
Dometic SeaStar
Part Number
DK4420
UPC
731957924773
Product Type
Hydraulic jack plate wire harness kit
Compatibility
Applicable SeaStar Standard and Xtreme hydraulic jack plate systems
Included Control
Basic rocker switch
SmartStick / Gauge
Not included
Sold As
One kit
Condition
New
Weight
Not published by the manufacturer
Dimensions
Not published by the manufacturer
Suggested HS Code
8544.42.9090 - insulated electrical conductors fitted with connectors; verify for the specific shipment
Country of Origin
Refer to the product label or packaging
Warranty
Dometic 2-year limited warranty

Downloads and Resources

Dometic SeaStar Standard Jack Plate Data Sheet Dometic SeaStar Xtreme Jack Plate Data Sheet SeaTech Marine Product Support

Frequently Asked Questions

Does the DK4420 include the rocker switch?

Yes. Dometic's SeaStar jack plate literature identifies the basic rocker switch as included with the jack plate harness.

Is DK4420 the same as the DK4220 SmartStick kit?

No. DK4420 is the jack plate wire harness. DK4220 is a SmartStick position sensor and gauge kit used to provide jack plate height information.

Will DK4420 fit every SeaStar jack plate?

No. It is intended for compatible SeaStar Standard and Xtreme hydraulic jack plates. Manual jack plates and some older Detwiler or D3000-series systems use different electrical components. Confirm your jack plate model or existing harness part number before ordering.

Does this kit include the actuator or hydraulic jack plate?

No. The actuator and complete jack plate assembly are sold separately. This listing is for the DK4420 electrical harness kit and basic rocker switch.

Can a bad harness cause intermittent jack plate operation?

Yes, damaged wiring, loose connectors, corrosion or a poor power or ground connection can cause intermittent operation. The switch, circuit protection, battery connections and actuator should also be inspected before replacing parts.

Is professional installation recommended?

Marine electrical installation experience is recommended. Disconnect battery power before service, route the harness away from heat and moving parts, protect it from chafing, and follow the applicable Dometic installation instructions.

OEM SeaStar Replacement Part

Dometic SeaStar DK4420 Jack Plate Wire Harness

OEM replacement electrical harness for compatible SeaStar Standard and Xtreme hydraulic jack plates. Includes the basic rocker switch.

Tech Support Check Stock Shipping Quote About Us
Part DK4420
Type Wire Harness
Fits Compatible Hydraulic Jack Plates
Includes Basic Rocker Switch
Confirm fitment: This is not the DK4220 SmartStick and gauge kit. Match your jack plate model or existing harness part number before ordering.
Product Details
  • Genuine Dometic SeaStar replacement part
  • For applicable Standard and Xtreme hydraulic jack plates
  • Restores jack plate power and control wiring
  • Includes the basic rocker switch
  • SmartStick sensor and height gauge are not included
Compatibility

Designed for compatible SeaStar Standard and Xtreme hydraulic jack plates. It is not for manual jack plates, and some older Detwiler or D3000-series systems use a different harness.

Specifications
  • Manufacturer: Dometic SeaStar
  • Part Number: DK4420
  • UPC: 731957924773
  • Sold As: One kit
  • Condition: New
  • Warranty: Dometic 2-year limited warranty
Downloads

Standard Jack Plate Data Sheet

Xtreme Jack Plate Data Sheet

Installation Note

Disconnect battery power before service. Protect wiring from heat, sharp edges, moving parts and chafing. Marine electrical installation experience is recommended.
