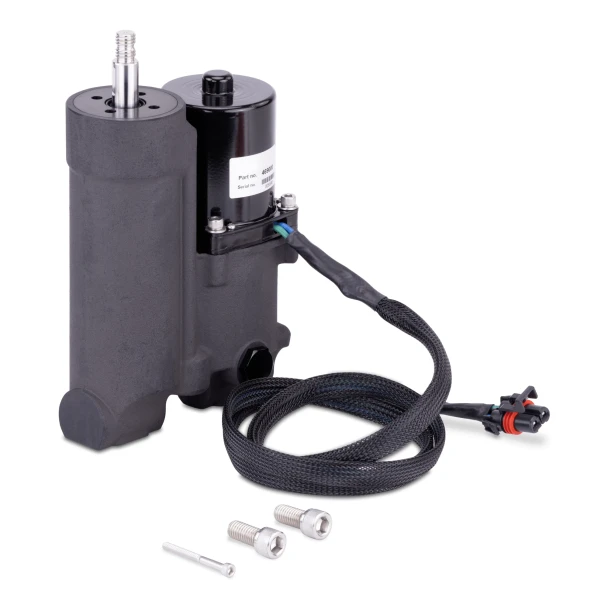

SeaStar DK4720 Actuator Kit, 7/16" Mount Bolt, 3/8" socket (Used on JP w/ser no. above D4000-001843 and any JP ser # starting w/JPxxxx)

Product Overview

DK4720 is used when replacing the later-style actuator assembly on compatible SeaStar hydraulic jackplates. It is the correct replacement kit for jackplates with serial numbers above D4000-001843, as well as jackplates with serial numbers that begin with JP.

This kit is commonly needed when the jackplate actuator, motor or pump assembly is being replaced. Because the actuator design changed over time, the jackplate serial number is the most reliable way to confirm whether DK4720 or DK4710 is required.

When to Use DK4720

• Use DK4720 for jackplate serial numbers above D4000-001843.
• Use DK4720 for any jackplate serial number beginning with JP.
• Use DK4720 for the 7/16" mount bolt and 3/8" socket actuator style.
• Use DK4710 instead for serial numbers D4000-00001 through D4000-001843.

DK4710 vs DK4720 Replacement Guide

Replacing Older DK3001, DK3002 and DK3003 Motor / Actuator Parts

Older DK3001, DK3002 and DK3003 part references may appear on jackplate parts, invoices, service records or older product listings. The current replacement should not be selected by the old number alone.

Ordering Tips

• Find the jackplate serial number before ordering.
• Match the serial number to DK4710 or DK4720 using the chart above.
• Do not rely only on older DK3001, DK3002 or DK3003 references.
• Send us a photo of the jackplate label or old actuator if you are not sure which kit applies.
