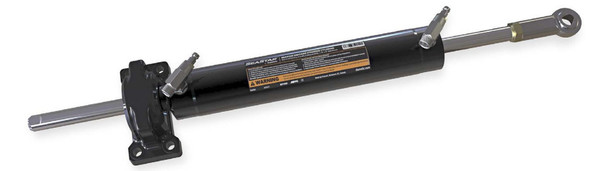

Seastar HC5319-3 Inboard BA175-7TM Hydraulic Marine Steering Cylinder

Seastar HC5319-3 Inboard BA175-7TM Hydraulic Marine Steering Cylinder

Seastar inboard hydraulic steering cylinders are manufactured for pleasure and work boats up to 50ft. The HC53193 replaces several Capilano Cylinders that are now obsolete and are listed below. The new cylinder retains the same mounting configurations and dimensions as the previous models, however the cylinder bore may have changed. Talk to Dometic Seastar before purchasing if you are not sure if this cylinder will fit, normal return policy applies either way.

Features:

• Low Friction hydraulic steering
• Easy installation on single and dual rudders
• Supplied with bleeder fittings
• Updated from 1/4" NPT fittings to -5 ORB fittings
• Updated seals for longer cylinder life

Specs:

• Bore Dia.:1.75"
• Shaft Dia: 0.75"
• Stroke: 7"
• Displacement: 13.7 Cu.In
• Material: Aluminum
• Same Stroke and Mounting Pattern as HC5318, HC5349, HC5355
• Larger bore than HC5318, HC5439 & HC5355 will result in more turns lock to lock

Related Products

• Hydraulic Steering Fluid: HA5430H or H5606
• Rod End Kit: HP6013
• Fitting Kit: HF6002

Downloads:

• SeaStar Hydraulic Inboard Steering Cylinder Installation Manual [PDF]
• SeaStar Hydraulic Inboard Steering Brochure [PDF]
• SeaStar Catalog [PDF]
• Seastar HC5319-3 Update Notice [PDF]

This Product Replaces:

• HC5319, HC5319A, HC5319CAT
• HC5318 (Larger bore, more system turns lock to lock)
• HC5349 (Larger bore, more system turns lock to lock, new ORB fittings, Requires SEATECH-STUBHOSE-1)
• HC5350 (New ORB fittings, Requires SEATECH-STUBHOSE-1)
• HC5355 (Larger bore, more system turns lock to lock, new ORB fittings, Requires SEATECH-STUBHOSE-1)
• HC5356 (New ORB fittings, Requires SEATECH-STUBHOSE-1)
• This part is an alternative to some Capilano and SeaStar cylinders, use our TECH SUPPORT page to ensure you are purchasing the correct part.
