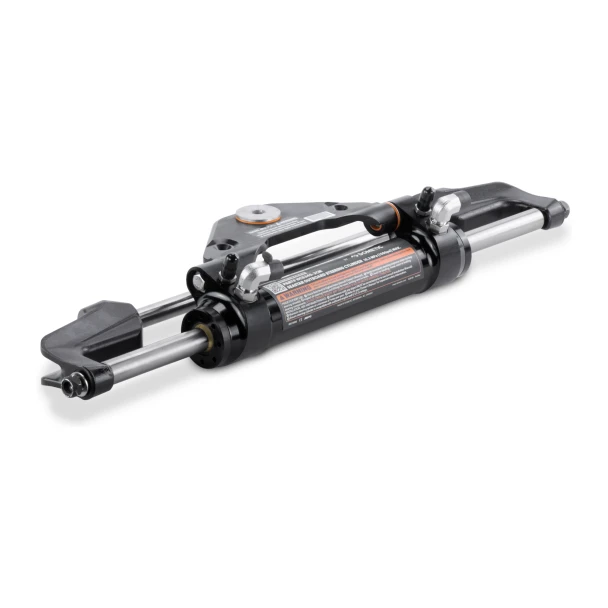

Seastar HC5345-3CM Commercial Grade Outboard Cylinder

Seastar HC5345-3CM Commercial Grade Outboard Cylinder

The Dometic Seastar HC53453CM Commercial Grade Cylinder is a direct replacement for vessels or applications using the current HC5345-3 cylinder. The new cylinder offers enhanced features and improved salt water corrosion resistance that makes it commercial grade.

New Features

1. High grade stainless steel shaft with state-of-the-art surface treatment
2. End glands equipped with metal scrapers keep ice and debris out of the wiper and seals
3. The metal scraper end glands used in this cylinder can be purchased separately to retrofit current Seastar cylinders # HS5167MS

Features:

• Independent engine tilt for multiple engine installations
• Upgrade over BayStar and mechanical steering - easier to steer
• Can be used with all SeaStar hydraulic steering boat helm pumps
• Seastar's innovative sealing system provides resistance against the harsh outboard environment

• The new SeaStar stainless steel adjustable o-ring fittings make for easier installation

Specifications:

• Shaft Diameter: .75in (19.0mm)
• Stroke: 8in (203mm)
• Volume: 8.34in (136.6mm)
• Seal Kit: HS5167MS

Downloads Section:

• SeaStar Hydraulic Front Mount Cylinder Installation [PDF]
• SeaStar Single Outboard Engine Hydraulic Cylinder Application Guide [PDF]
• SeaStar Front Mount Cylinder Fill and Bleeding Instruction [PDF]
• SeaStar Hydraulic Steering Selection Guide [PDF]

Related Parts:

• HS5157 Seal Kit

You May Also Consider Purchasing:

• HA5430H: 1qt SeaStar Hydraulic Steering Fluid
• HA5438: 1x Bottle Filler Kit
• PA6010: 1x SeaStar Power Assist Unit w/ AutoPilot Pump - Simply Add In Between the Helm and Cylinder Lines for car like steering
• HO51XX: 1x SeaStar Outboard Hose Kits

Will This Cylinder Work on my Boat?

• If you have a Single Outboard Engine (Normal Use)
