Description

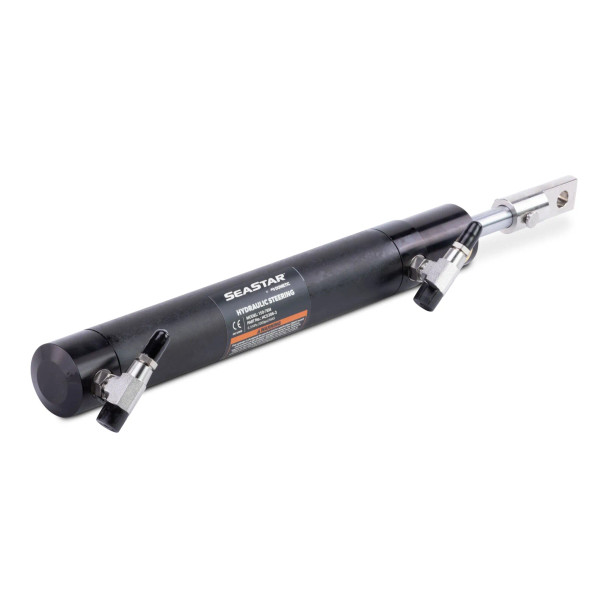

SeaStar HC5386-3 150-7EM Sterndrive Steering Cylinder
Dometic SeaStar part number: HC5386-3
Transom-bracket-mounted, unbalanced steering cylinder for the selected Volvo, Yanmar and Mercury sterndrive arrangements in the SeaStar application guide. It mounts to the drive’s transom bracket and tiller arm.
The manufacturer’s current inboard/sterndrive manual shows the transom bracket as an engine-manufacturer component, with the cylinder linking to the drive’s tiller arm. Dometic specifically excludes SeaStar PRO helms for this unbalanced cylinder.
The manufacturer excludes SeaStar PRO helms. Drive model, steering configuration and the guide’s adapter notes determine the installation; this is not a fit claim for every drive from those brands.
Specifications
| Part number | HC5386-3 |
|---|---|
| Model reference | 150-7EM |
| Bore | 1.50 in / 38.1 mm |
| Shaft diameter | 0.625 in / 15.9 mm |
| Stroke | 7.0 in / 178 mm |
| Volume | 10.2 in³ / 167 cc |
| Mount | Transom bracket |
Manufacturer manuals and downloads
- Dometic Marine Steering Selection Guide (PDF, 39.6 MB)
2027 · Revision 32. Part reference. Exact part number appears in the manufacturer guide’s application, service-parts or fittings table; see cited pages. PDF pages 63, 64, 94.
- SeaStar Inboard and Sterndrive Cylinders — Installation and User Manual, Book 2.1 (PDF, 3.6 MB)
Form 343319, Revision S · printed 04/24. Part reference. Manufacturer-linked inboard/sterndrive manual, with exact named service or application reference. PDF pages 24, 47.
