Description

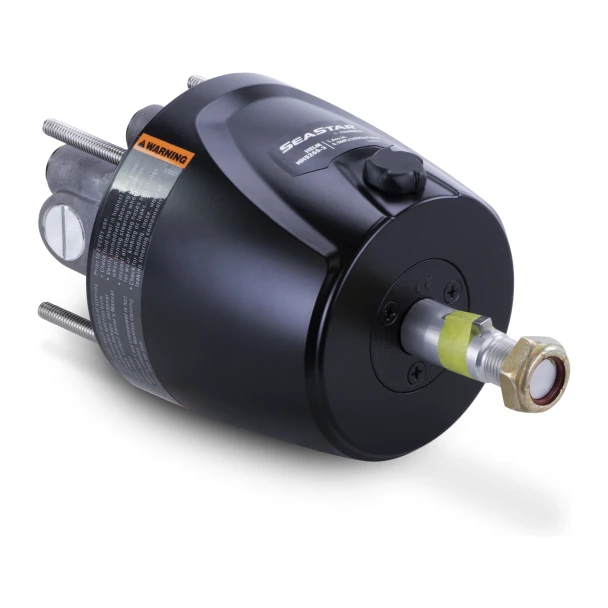

Seastar HH5269-3 Front Mount 1.4 Hydraulic Boat Helm Pump
The Dometic Seastar HH52693 hydraulic helm pump is an essential component for marine vessels. Its installation flexibility and compatibility with different boat types and applications make it a top choice. With this steering system, you can take full control and navigate comfortably while operating your vessel. It is specifically designed for high-performance boats with a single or multiple outboards up to 700 HP, making it the preferred option for center consoles, cruisers, and other vessels. Trust in the quality of this hydraulic system, which is the go-to choice of OEMs for various marine applications.
Important: Seastar Helm Update to -4
- You can find the updated HH5269-4 Helm Pump HERE
- HH5269-4 replaces the HH5269-3, HH5269 and is the direct replacement
Applications:
- Most Hydraulic Steering applications for inboard/sterndrive/outboard boats up to 50ft
- Single outboard engine boats that travel up to 60MPH, for boats over 60MPH see PRO Helm Pumps
- Capable to be used in multiple stations
- (Replaces HH5269, updated -3 ORB fittings)
Features:
- Compact helm
- Standard 3/4" tapered steering shaft
- Accepts wheels up to 28"
- Small 3.0" Hole cutout in dash
Specifications:
- Front Mount Installation
- 1.4 cubic inches
- 1000 PSI Relief Valve Settings
What Comes In The Box:
- HH5269-3 Helm Pump
- Mounting Hardware
- HF6004 Fitting Kit 2x ORB-5 90° repositionable elbow fittings
Downloads & Resources:
- SeaStar Boat Helm Installation Manual [PDF]
- SeaStar Hydraulic Steering Selection Guide [PDF]
- SeaStar Marine Steering Catalog [PDF]
- Dometic Seastar Hydraulic Build Guide [HERE]
- We can rebuild your HH5269-3 [HERE]
CAUTIONS:
- Do NOT use Teflon or Loctite on the fittings.
- Do NOT try to install NPT fittings into helm pump as it may cause damage to the threads.
- The fluid cap must be in the uppermost position at ALL times.
- NEVER use brake fluid, only SeaStar Steering fluid or Mil Spec H5606 Fluid.
Installation Notes:
- The helm pump is packaged with repositionable O-ring hose fittings (ORB).
- If a 20° mounting wedge is used, cut out dash as per mounting wedge template and mount helm directly to the 20° wedge.
- The helm may be mounted with the helm shaft horizontal, vertical, or any angle in between.
- Install the hose fittings before installing helm pump for ease of installation.
Related Items & Spare Parts:
- HA5430H 1 Quart of SeaStar Fluid
- HA5438 Helm Bottle Filler Kit
- HP6032 Service Kit
- HF6004 Fittings
- HA5432 Non Vent Cap
- Seastar Hose
- Seastar Helm Pumps
- Seastar Cylinders
SeaStar HH5269-3 Dimensions:
Questions?
- Tech Support: Tech Support Page
- Check Stock: Stock Inquiry Page
- Request a Shipping Quote: Request Quote Page
- No Sales Tax on Purchases Outside of California
- Buy Now Pay Later with Affirm or PayPal Pay Later
- FREE Ground Shipping to the Contiguous 48 States
- Formerly Teleflex, Seastar is now Dometic Marine
- Seatech Marine Products, Inc. is an authorized dealer, and service center for Dometic Marine
International Customers: We Ship Worldwide, Shipping Cost May Quote Too High on Our Web Site, contact us for a quote.
Warranty Information
Seatech Marine Products is an authorized dealer for Dometic that distributes Seastar Products, this part has a 2 Year Limited Warranty from them. Please visit their website for full details: https://www.dometic.com/en-us/outdoor/support/warranty-statements
