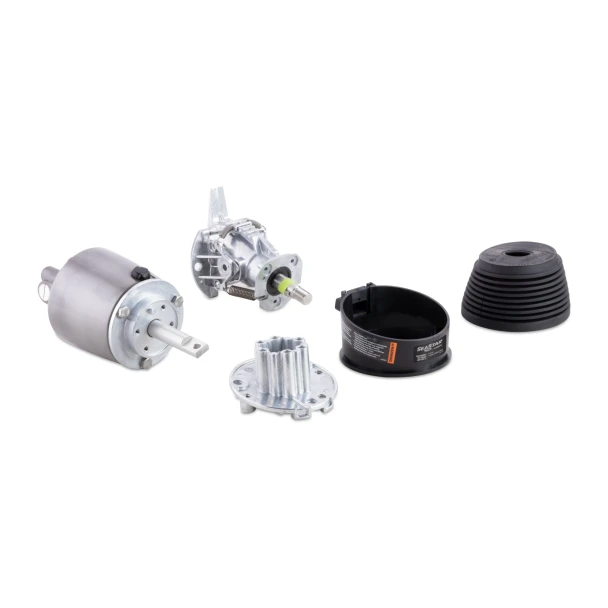

SeaStar HH6190-4 PRO Sport Tilt 2.0 Hydraulic Boat Helm Pump

SeaStar HH6190-4 PRO Sport Tilt 2.0 Hydraulic Boat Helm Pump

The Dometic SeaStar PRO outboard steering helms (HH61904) and cylinders are suited for critical high speed, single powered outboard boats, like bass, flats, combo race/ski and other performance orientated boats capable of speeds in excess of 60mph. Designed for the performance boater, Dometic SeaStar Pro is the ultimate steering system for high-speed single engine outboards.

Important: SeaStar Helm Update to -4

The latest series of helms has been redesigned to provide a better experience for the vessel operator:

• New valve technology ensures tighter, quieter, and more responsive steering, while minimizing the potential for chattering when dealing with overrunning steering loads.
• More durable check valves, making the entire steering system more resilient to the rigors of trailering.
• Revamped Design to enhance their aesthetics, and has introduced a new fill port plug design for easier maintenance.
• HH6190-4 replaces the HH6190-3, HH6190 and is the direct replacement

Applications:

• For single-engine application only
• Single outboard engine boats that travel in excess of 60 MPH

Features:

• 4.25 turns lock-to-lock
• Compact Helm - Needs only 3" Dash Hole
• 2.0 Cu.In./Rev.
• Standard 3/4" Tapered Steering Shaft
• Fits steering wheels up to 20"
• Remote Fill Point
• 5 Wheel Positions
• 48° Degree tilt range
• Warranty: Limited 2 Year

What Comes In The Box:

• HH6190-4 Helm Pump
• Mounting Hardware
• HF6004 Fitting Kit 2x ORB-5 90° repositionable elbow fittings

Downloads & Resources:

• SeaStar Boat Helm Installation Manual [PDF]
• SeaStar Hydraulic Steering Selection Guide [PDF]
• SeaStar Marine Steering Catalog [PDF]
• Dometic Seastar Hydraulic Build Guide [HERE]
• We can rebuild your HH6190-4 [HERE]

Notes:

• Must be used with the SeaStar PRO Kevlar Hoses (HO57XX and HO82XX)
• Must be used with the PRO Cylinder HC6345-3 or HC6358-3
• Relief valve settings 1500PSI
• This part is a direct replacement for the HH5290

Related Items & Spare Parts:

• HA5430H 1 Quart of SeaStar Fluid
• HA5438 Helm Bottle Filler Kit
• HP6032 Service Kit
• HF6004 Fittings
• HA5432 Non Vent Cap
• Seastar Hose
• Seastar Helm Pumps
• Seastar Cylinders
