SeaStar HK7500-4 PRO Hydraulic Steering System Kit

SeaStar HK7500-4 PRO Hydraulic Steering Kit

The Dometic SeaStar PRO HK75004 Steering Kit is designed for high torque SINGLE non-power-assisted up to 350HP outboard applications such as bass boats, flats, combo race/ski and other high performance oriented boats capable of speeds in excess of 65mph. SeaStar PRO has steered the BASS Masters Classic since 1994 and it's the choice of high performance outboard boat builders. It is suitable for use with high-performance propellers and jack plates. The hose comes standard with brass fittings but you can choose to upgrade to Stainless Steel Fittings, optimal for salt water use. And we provide any size PRO hose (HO5700), these options are provided for FREE above.

Important: SeaStar Helm Update to -4

The latest series of helms have been redesigned to provide a better experience for the vessel operator:

• New valve technology ensures tighter, quieter, and more responsive steering, while minimizing the potential for chattering when dealing with overrunning steering loads.
• More durable check valves, making the entire steering system more resilient to the rigors of trailering.
• Revamped Design to enhance their aesthetics, and has introduced a new fill port plug design for easier maintenance.
• Kits with hoses are discontinued, we provide the hose and option to upgrade the hose fittings ON US!
• HK7500-4 replaces the HK7500A-3, HK7500A, HK7500 and is the direct replacement

Choose Hose Length & Fitting Style:

• Add any SeaStar PRO steering hose length with the drop down above at no additional charge.
• Choose to upgrade the hose fittings to stainless steel, ideal for salt water applications at no additional charge.
• These options are specific to Seatech Marine Products. We are an authorized Dometic SeaStar hose manufacturer. The stainless steel fittings option and odd number hose lengths are not options you will find anywhere else!

Applications:

• Bass, Flats, combo Race/Skit and other high performance oriented boats capable of speeds in excess of 65mph
• Single Non-Power Assisted Outboards Up to 350HP
• SeaStar PRO has been installed on premium bass boats as original equipment for many years. It's the ideal upgrade for twin-cable mechanical steering

Features and Benefits:

• Complete Kit: Helm Pump, steering ram/cylinder, fittings, hoses, oil, bleeder kit, and detailed instructions
• Unique Valve System: Keeps pressure at both hydraulic lines equal, the wheel feels solid and sure at all times
• Low Friction Hydraulic Steering: Less steering fatigue
• Compact Helm Pump: 4 7/16" footprint
• Factory Swaged Hoses: Kevlar reinforced, rated at 1500PSI
• Manufactured with longer shaft bushings and larger pivot bushings for an even more solid feel

Specifications for Items Included with Pictures:

• HH5770-4 PRO 2.0 Front Mount Helm Pump
• Turns Lock to Lock: 4.25
• Dash Cut Out Dia: 3"
• Footprint Dimensions: 4.4375"
• Shaft Size: 3/4" Taper
• HC6345-3 PRO Front Mount Outboard Cylinder
• Bore Dia: 1.375"
• Nominal Shaft Dia: 0.75"
• Displacement: 8.34in³/rev
• HO5700 10-35' PRO Kevlar Hoses
• PSI Rating: 1500
• Length: 10ft - 35ft
• Connections: Brass or Stainless Steel
• HA5430H SeaStar Hydraulic Steering Fluid
• Quantity: 2 Quarts

Application Guide:

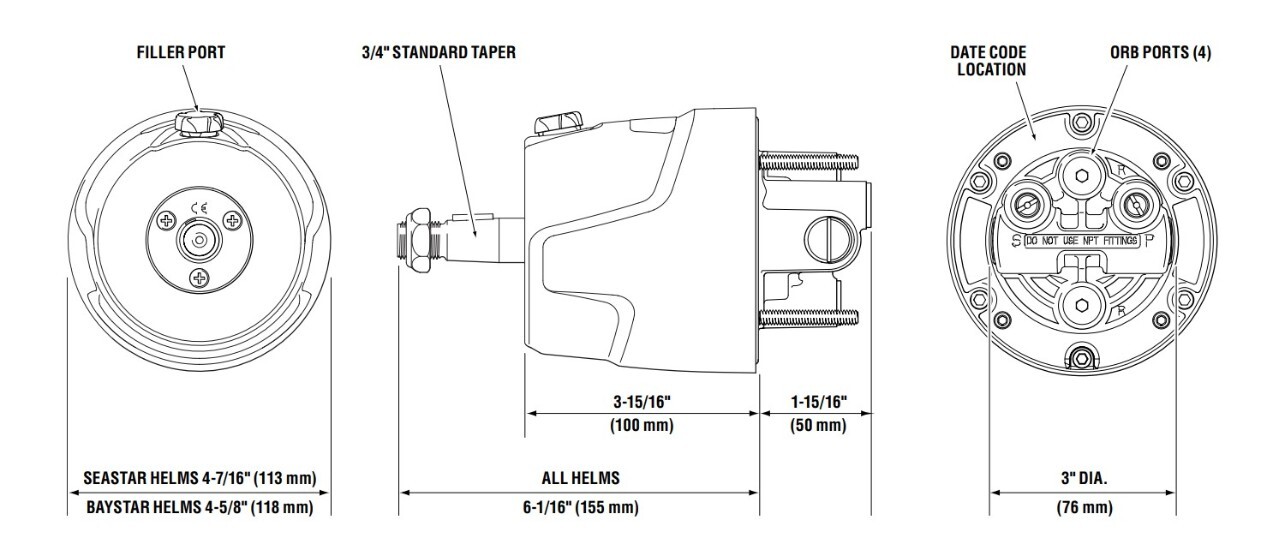

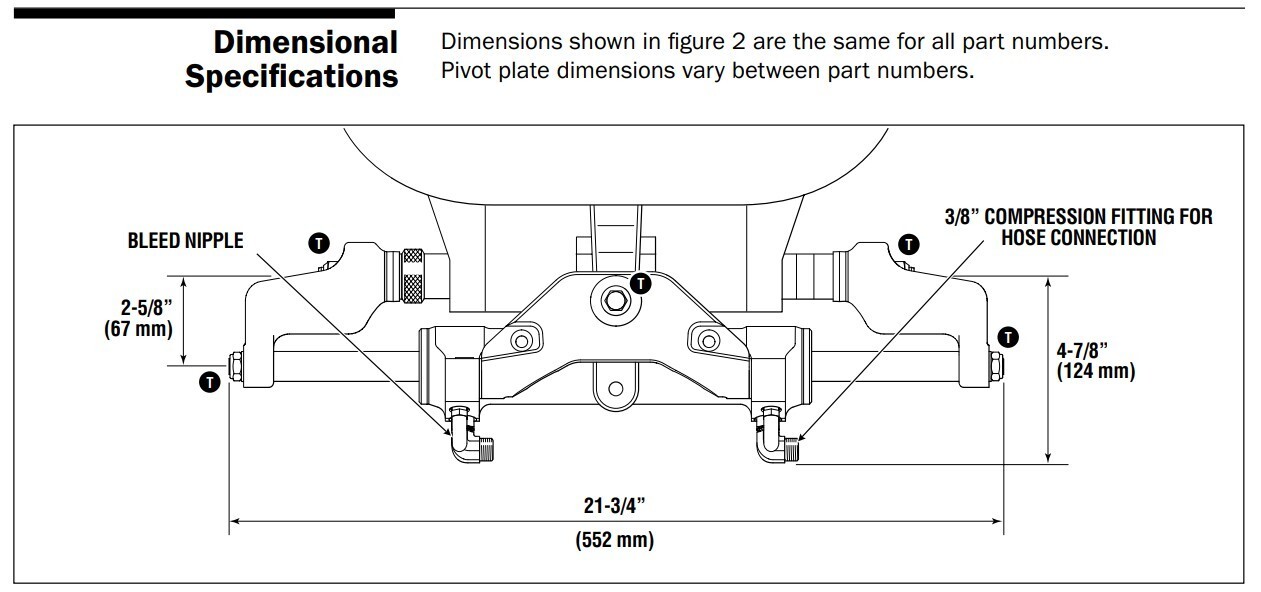

Helm Pump and Cylinder Dimensions:

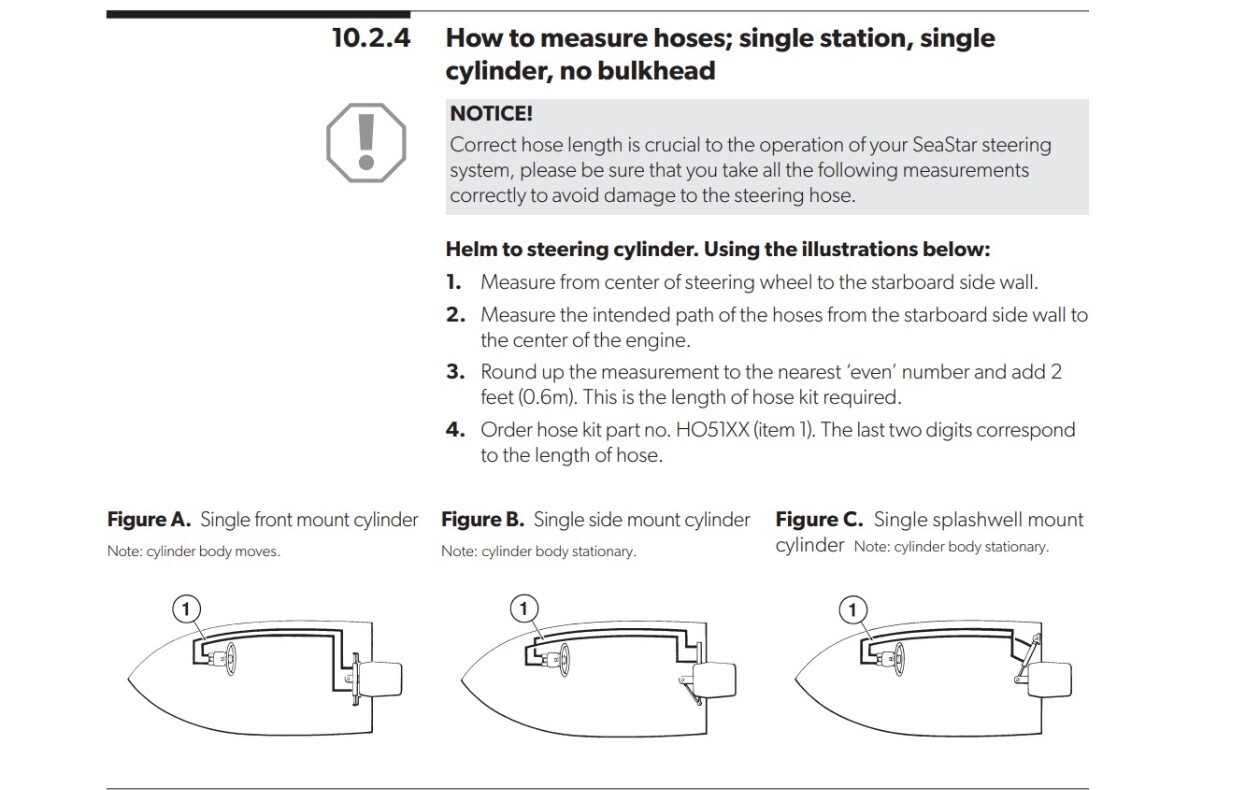

How to Measure Hydraulic Steering Hoses:

Related Items:

• HK6400-4: Standard Steering Kit
• PA1315-2: PRO Power Assist
• HA5419: 20° Dash Wedge Kit

Downloads & Resources:

• Cylinder Installation Manual [PDF]
• Helm Pump Installation Manual [PDF]
• SeaStar Steering Catalog [PDF]
• SeaStar Hydraulic Steering Selection Guide [PDF]
• Dometic Seastar Hydraulic Build Guide [HERE]
