Description

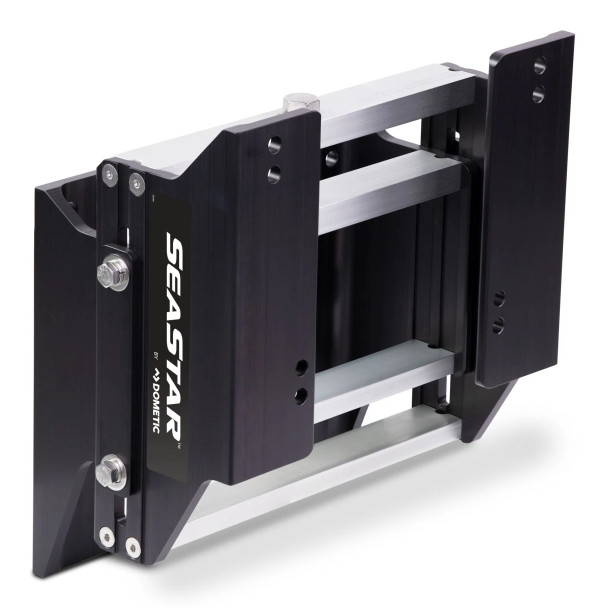

SeaStar JP1100SS Manual Jackplate, 10-Inch Setback
Dometic SeaStar part number: JP1100SS
A manually adjusted outboard jackplate with a 10-inch setback. A stainless lead screw sets the engine height, and side locks hold the selected position.
Interlocking slide guides support the moving plate and guide its vertical travel.
Specifications
| Part number | JP1100SS |
|---|---|
| Series | JP1000 manual |
| Setback | 10 in |
| Height adjustment | Manual lead screw |
| Position retention | Side locks |
| Maximum supported engine weight | 585 lb |
Manufacturer manuals and downloads
- Dometic Ride & Handling catalog (PDF, 130.5 MB)
Revision 04.15.22 (2022). Part reference. Factory listing matched; check the illustrated system and connection. PDF page 235.
Warranty Information
Seatech Marine Products is an authorized dealer for Dometic that distributes SeaStar Products, this part has a 2 Year Limited Warranty from them. Please visit their website for full details: https://www.dometic.com/en-us/outdoor/support/warranty-statements
