Sleipner SM8010 GRP Bow Tunnel, 185 x 1000 x 4 mm
Sleipner / Side-Power part number: SM8010

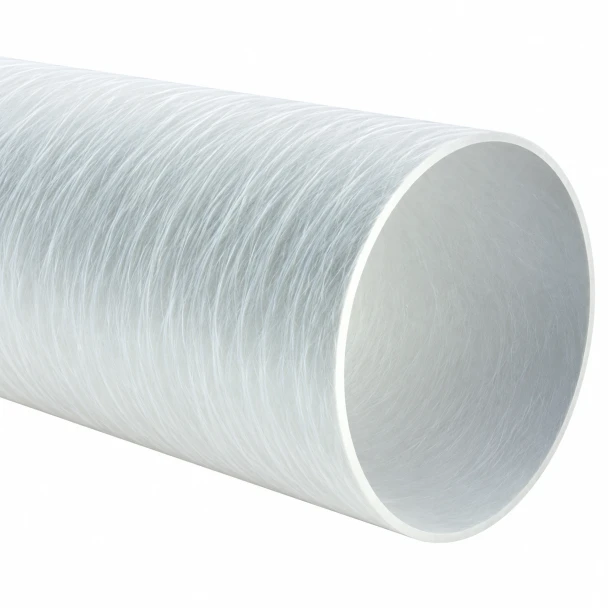

A grp bow-thruster tunnel section measuring 185 x 1000 x 4 mm.
This GRP tunnel uses longitudinal and cross-woven reinforcement with polyester resin. The manufacturer distinguishes the internal bore from the outside diameter; compare both dimensions and the wall thickness with the thruster installation requirements.
The tunnel section forms the through-hull passage for the thruster.
Specifications
| Part number | SM8010 |
|---|---|
| Material | GRP |
| Tube diameter as listed | 185 mm |
| Length | 1000 mm |
| Wall thickness | 4 mm |
| Documented model references | SE60 |
Manufacturer manuals and downloads
- Sleipner GRP Tunnels Technical Specifications (PDF, 655 KB)
Version01.2022. Part reference. Exact numbered GRP tube in manufacturer dimensional table; diameter means internal bore, not external diameter. PDF page 2.
Warranty Information
Seatech Marine Products is an authorized dealer for Sleipner (Sidepower). They cover products with a 2 year pleasure or 1 year commercial limited warranty. Visit Sleipners website for full information: https://www.sleipnergroup.com/support/faqs
