Lofrans LW275AN Dorado 500W 12V - Horizontal Windlass

Lofrans Dorado Horizontal Windlass – 12V, 500W & 800W Models

Compact, Efficient Windlass for Boats up to 32 ft – Rope/Chain Combination Ready

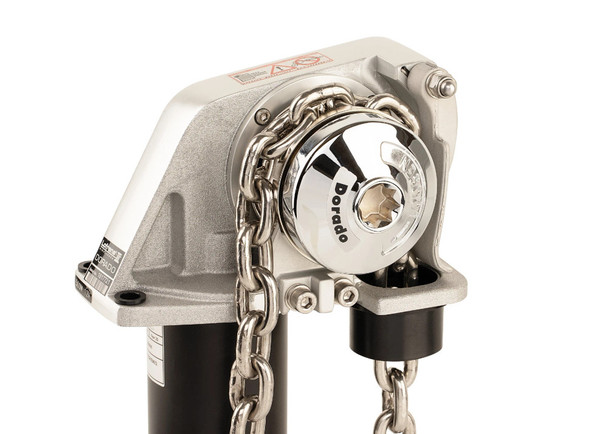

The Lofrans Dorado Horizontal Windlass is a low-profile, high-efficiency anchoring solution designed specifically for boats with limited anchor locker space. With a vertically-mounted motor inside a compact, anodized aluminum housing, the Dorado is ideal for vessels up to 32'. It provides reliable rope and chain handling through a spring-loaded pressure finger system, ensuring smooth operation with combination rodes.

Available in both 500W and 800W 12V models, the Dorado delivers powerful retrieval, manual chain release, and optional automatic free-fall functionality. Built with marine-grade materials and backed by Lofrans’ reputation for durability, it’s a versatile choice for cruisers, day boats, and coastal vessels.

Key Features & Benefits

✔ Compact Design for Tight Spaces – Perfect for boats with restricted anchor lockers, with a small horizontal footprint.

✔ Rope & Chain Compatibility – Integrated spring-loaded arm allows reliable rope-to-chain transitions using the same gypsy.

✔ Manual Chain Release – Adds versatility and backup functionality in the event of power loss.

✔ Durable Marine Construction – Crafted from marine-grade anodized aluminum for corrosion resistance and long life.

✔ Heavy-Duty IP66 Electric Motor – Fully sealed for harsh marine environments, rated for continuous, high-speed operation.

✔ Optional Automatic Free Fall – Add-on feature for hands-free anchoring deployment.

✔ Hot-Forged Components – Key mechanical parts are hot forged for superior strength and durability.

✔ Included Watertight Control Box – All models ship with control box and clutch handle for quick installation.

Available Models & Specifications

Model: LW275AN – 500W Version

Model: LW280AN – 800W Version

Standard Equipment Included

• Dorado Windlass
• Watertight Control Box
• Clutch Release Handle
• Neoprene Mounting Gasket

Related Parts

• Handheld Remote Control (wired or wireless)
• Anchor Windlass Circuit Breakers
• Toggle Switch Up/Down
• AutoAnchor Panel Mount Remote Control (with Anchor Rode Counter) (Wireless or Wired)
• Chain Stopper
• Bow Roller
• Anchor Chain Accessories

Downloads & Resources

• Click here to view the Lofrans Dorado LW275AN Owners Manual PDF
• Click here to view the Lofrans Chainwheel Chart
• Click here for the Lofrans Dorado Parts Breakdown
• Click here for the LW275AN Dimensional Diagram
• Click here to view the 3 Terminal Wiring Diagram
• Click here to view Lofrans Gearbox Oil Capacity Guide
• Click here to view the Lofrans Master Parts List
• Click here to view Imtra's Anchoring Windlasses Product Catalog
• Click here to view the 2 Terminal Wiring Diagram

Why Choose the Lofrans Dorado Windlass?

The Lofrans Dorado offers an exceptional balance of performance, compactness, and ease of installation, making it a favorite among boaters with space constraints or looking for a reliable combination windlass. From its IP66-rated electric motor to its marine-grade anodized construction, every detail is engineered for the harsh marine environment and reliable day-to-day use.

Compact. Capable. Built for the Sea. Upgrade your anchoring with the Lofrans Dorado Windlass.
