Description
NEXTGEN UCM1-3.5 3.5kw Ultra Compact Generator
The Next Generation 3.5KW Generator is one of the lightest, most compact and efficient gen-sets in its class.
- Comes with or without an enclosure
- Comes with the option for Ignition Protection
- Mid speed operation provides low sound and vibration levels
- Lower operating speeds to reduce sound levels and increase life expectancy
- Fully fresh water marinized heavy duty Kubota diesel engine for trouble free operation
- Average fuel consumption to just 2/10 GPH
- Ultra compact size and light-weight construction
To receive Special Pricing on this unit, please click on the Request Special Pricing form below.
Product Features:
- Cupro - Nickel Heat Exchanger
- Unit mounted self priming impeller pump
- Stainless steel water cooled exhaust mixer
- Air Cleaner/intake silencer
- Oil pressure & water temperature safety shutdown
- Extra wide timing drive system
- 12 volt electric fuel pump
- Extra resilient four point isolation mounts
- “Easy Drain” oil change system removable/cleanable oil filter
- Front side service
- Marine grade tinned wire
- Fuel filter
- Main breaker
- Belt guard
- Remote start panel with hour meter and harness
- 3 Year Limited Warranty
Product Specifications:
- Dimensions
- 28" Long x 15.5" Wide x 15" High
- With Enclosure 30" Long x 18" Wide x 16.5" High
- Weight
- Without Enclosure 160lbs
- With Enclosure 200lbs
- Operating Speed: 1,800 RPM (Less wear and tear compared to a 3,600RPM Genset)
- Output Volts: 120/240
- Output Amps: 30/15
- Output Watts: 3,500
- Horizontal, Water Cooled 4 Cycle diesel engine
Number of Cylinders | 1 |
Bore x Stroke (In) | 2.95 x 2.76 |
Displacement (Cu. In.) | 18.86 |
SAE net intermittent (HP/rpm) | 7/2800 |
Combustion System | Spherical |
Compression Ratio | 23:1 |
Fuel injection Pump Type | Bosch “mini” type |
Nozzle Type | Bosch “throttle” type |
Cooling System | Fresh Water Heat Exchanger |
Lubricating System | Forced by trochoid pump |
Fuel | ASTM #2 diesel or equivalent |
Lubricating Oil | Quality better than API service CE |
Fresh Water capacity | 1.2 qt. |
Lubricating Oil Capacity | 1.O U.S. Quarts |
Starting System | 12V Battery |
Charging System | None |
Fuel Line Diameter | 5/16" |
Return Line Diameter | 1/4" |
Raw Water Diameter | 5/8" |
Exhaust Diameter | 1 1/2" |
Optional upgrades:
- Ignition Protection Certification
- Sound Enclosures
- 20' or 30' Wire Harness
Downloads & Resources:
- NextGen 3.5 Generator Brochure [PDF]
- NextGen 3.5 Generator Manual [PDF]
- Tech Support: View Our Tech Support Page

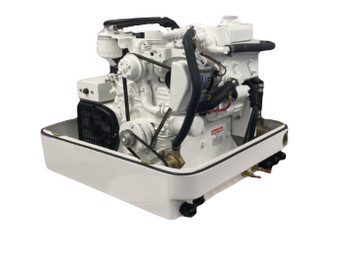

Other Generators:
Warranty Information
Seatech Marine Products is an authorized dealer for NEXTGEN Generators. This has a limited 3-year warranty from them.
