NHK MEC KE412 KE-4XG Single Station Single Engine Kit - Chrome Control Head with Composite Handle

The NHKMEC KE-4XG KE412 Kit is an electronic engine control system, commonly referred to as fly by wire boat controls, for a single mechanical shift and throttle engine. The smooth shifting between gears and the throttle response makes this system a must have upgrade over older mechanical controls. The KE-4XG electronic engine control system is also perfect for a new installation in leisure boats to commercial fishing vessels.

Why You Should Consider Purchasing the KE-4XG Electronic Engine Control System:

• Great for new installations or replacing mechanical controls
• Will save your engine's transmission with smooth gear shifting
• Adds immense value to one of the most important functions of your marine vessel
• You won't want to go back to mechanical engine controls!

Features:

• The easiest and quickest to install electronic engine control system
• A Laptop is required for installs (rentals available)
• Up to 4 Stations - plus 1 handheld
• Mechanical Back-Up
• Neutral warm up function
• Start in gear protection
• Shift and throttle actuator are in the same unit
• Compact and ergonomic control head

Specs:

• DC9V~32V - Input Voltage
• 16A peak/ 5A typical Current consumption
• Operating thruster 147N
• Maximum Workload 343N
• Shift Travel 24mm-38mm (fwd, rev) - adjustable
• Throttle Travel - 78.5mm Max - adjustable

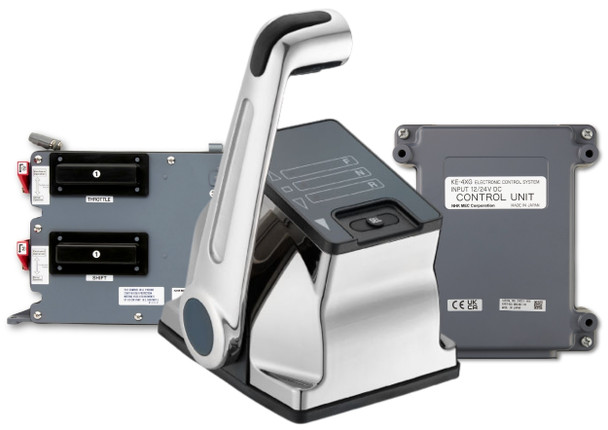

What Comes In the KE412 Kit:

• 1x NM2012-00 Single Handle Chrome Control Head with T- composite handle
• 1x NM3462-00 KE-4XG Control Unit 12/24V
• 1x NM0183-00 KE-4XG Actuator
• 1x NM0647-09 T-Harness (R/C-1) with Terminators
• 1x NM0647-11 T-Harness (Single) with Terminators
• 2x NM0414-28 Power Harness - 5M
• 1x Control Head Buzzer 12v or 24vDC

What Else Is Needed?

• 1x Bus Harness (NM0649-xx) Sold in lengths 2m-30m (in 2m intervals)
• 2x Engine Control Cables (CCX633xx)

You May Also Want To Consider:

• KE412A - Add a station kit - 2nd Station only
• KE412A-3 Add a station kit  -3rd station only
• KE412A-4 Add a station kit - 4th station only
• NM1476-01 Settings Harness
• USB to D9 Adapter Harness
• Laptop (rentals available)
• Waterproof Breaker box

NHK MEC KE-4XG CONTROL HEAD DIMENSIONS:

Downloads and Resources:

NHK MEC KE4XG Instruction Manual [PDF]

Introducing the 2024 NHK MEC XG Electronic Engine Controls – Reliable Japanese Marine Controls

Released in 2024, the NHK MEC XG electronic engine controls are the latest innovation in marine engine control technology from the renowned NHK MEC. Known for their unmatched reliability and precision, NHK MEC marine controls are trusted in the marine industry worldwide. Although previously distributed by Morse and Teleflex in the United States and internationally, NHK MEC marine controls have always been proudly manufactured in Japan. With the new 2024 XG model, NHK MEC continues to set the standard in high-performance, durable engine controls for boating applications.
