KE512A-4 Fourth-Station Kit — Single-Engine — Chrome, Composite Lever

KE5XG · electronic shift and electronic throttle

The NHK MEC KE512A-4 adds a fourth helm station to a compatible single-engine KE5XG engine-control installation. It supplies the station components listed below; the base system provides the control unit.

• Product type: fourth-station kit
• Engine configuration: one engine; electronic shift and electronic throttle
• Lever style: composite; chrome control head
• Order separately: A bus harness selected for the added station route

Why add a fourth helm?

• Get a better view while maneuvering. Add an operating position where you can see the dock, stern or working area.
• Use another helm without duplicating the engine hardware. The added control head communicates with the compatible base system.
• Plan the station connection. Match the station-specific T-harness and bus-harness route to the system wiring diagram.

Included in the KE512A-4 station kit

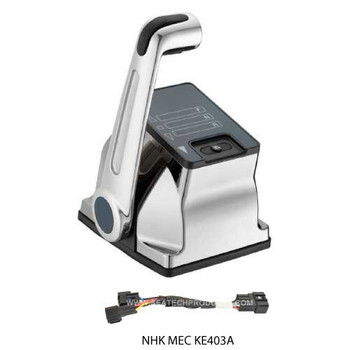

• 1 × NM2012-00 — Single-Engine KE-XG Control Head - Chrome - Composite Lever
• 1 × NM0647-19 — KE-XG T-Harness (R/C-4)
• 1 × control-head buzzer: NJ0251-00 for 12 V or NJ0515-00 for 24 V

Required separately and installation planning

• NM0649 bus harness — select the section length for the added station. Confirm each route length against the applicable wiring diagram. Bus, power and engine-interface harnesses have different roles.
• KE512 — a compatible KE5XG base installation must already be present or supplied separately. The station kit does not include another control unit.
• Use a laptop, NM1476-01 settings-tool harness and USB-KE-Adapter Harness for programming, following the KE-XG settings manual.
• The existing catalog lists an 80m limit for the total CANbus-harness run. Confirm the complete route and the permitted total length for the installed system with Seatech before ordering.

Request complete system pricing to include the required harnesses, cables and other installation parts.

Station expansion and setup options

KE5XG supports up to four helm control heads plus one optional wired handheld station with the appropriate components.

• KE512A — second-station kit
• KE512A-3 — third-station kit
• NM0907-00 — optional wired single-engine handheld remote; match the socket harness and system generation.
• NM1476-01 — settings-tool connection harness
• USB-KE-Adapter Harness — laptop USB-to-serial adapter

Dimensions and reference images

Base-system reference specifications

These figures describe the connected base system. The control unit is not included in this additional-station kit.

• Supply voltage: 9-32 V DC; for 12 V or 24 V installations
• Shift contact capacity: 5 A maximum, normally open, under nominal conditions
• Shift output: Matches the 12 V / 24 V supply for the shift-solenoid input
• Throttle current output: 3-21 mA
• Throttle voltage output: 0.2-4.53 V
• Throttle PWM output: 6-94% duty cycle at 500 Hz
• Throttle CAN output: SAE J1939; 250 kbit/s; PGN 61443; CAN ID 0CF0 0331; 0.4%/bit; transmit cycle 50 ms

Why choose Seatech for KE Controls?

Get help matching the system to your engine and gearbox, planning the harnesses and cables, and finding replacement parts.

Request a system quote or contact Seatech Marine Products for parts selection and shipping information.
