NHKMEC KE561A KE5XG Add a (2nd Station Only) Station Kit  - Dual Engine Control Head - Chrome w/ Tilt & Trim

The NHKMEC KE-5XG KE561A Kit is an add-a-station kit for the KE-5XG electronic engine control system for dual electronic shift and throttle engines. The smooth shifting between gears and the throttle response makes this system a must have upgrade over older mechanical controls. The KE-5XG electronic engine control system is also perfect for a new installation in leisure boats to commercial fishing vessels.

Why You Should Consider Purchasing the KE-5XG Electronic Engine Control System:

• Great for new installations or replacing mechanical controls
• Will save your engine's transmission with smooth gear shifting
• Adds immense value to one of the most important functions of your marine vessel
• You won't want to go back to mechanical engine controls!

Features:

• The easiest and quickest to install electronic engine control system
• Additional Set-up tool is not required
• Up to 4 Stations - plus 1 handheld
• Neutral warm up function
• Start in gear protection
• Shift and throttle actuator are in the same unit
• Compact and ergonomic control head

Specs:

• Supply voltage range: DC9V ~ DC32V
• Throttle Outputs
  A) Current: 3mA to 21mA
  B) Voltage: 0.2V to 4.53V
  C) PWM: 6% to 94% duty cycle, 500 Hz
  D) CAN: SAE J1939 protocol; 250 kbit/s; Tx cycle 50msecs, throttle scale 0.4%/bit; PGN 61443,
  CAN ID 0CF0 0331
• Shift Outputs
  Shift output will match battery level (12V / 24V) for connection to shift activation solenoid input.

What Comes In the KE561A Kit:

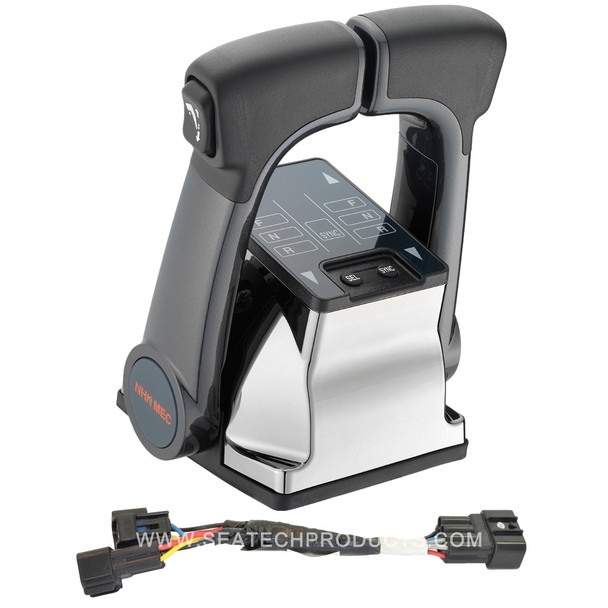

• 1 x NM2061-00 Dual Handles Chrome Control Head with Trim and Tilt integrated button - composite handles
• 1 x NM0647-17 T-Harness (R/C-2), KEXG
• 1x NJ0772-00 Trim Circuit Harness
• 1x Control Head Buzzer 12v or 24vDC

What Else Is Needed?

• 1x Bus Harness (NM0649-xx) Sold in lengths 2m-30m (in 2m intervals)

What Else You May Need To Purchase:

• Base System Kit: KE561

• 3rd Station Kit: KE561A-3
• 4th Station Kit: KE561A-4
• USB to D9 Adapter harness
• Settings tool harness NM1476-01
• Laptop (rentals are available)

NHK MEC KEXG CONTROL HEAD DIMENSIONS:

Downloads Section: NHK MEC KE5XG Manual [PDF]

CAUTIONS: Bus harness must not exceed 80m in total length.

Introducing the 2024 NHK MEC XG Electronic Engine Controls – Reliable Japanese Marine Controls

Released in 2024, the NHK MEC XG electronic engine controls are the latest innovation in marine engine control technology from the renowned NHK MEC. Known for their unmatched reliability and precision, NHK MEC marine controls are trusted in the marine industry worldwide. Although previously distributed by Morse and Teleflex in the United States and internationally, NHK MEC marine controls have always been proudly manufactured in Japan. With the new 2024 XG model, NHK MEC continues to set the standard in high-performance, durable engine controls for boating applications.
