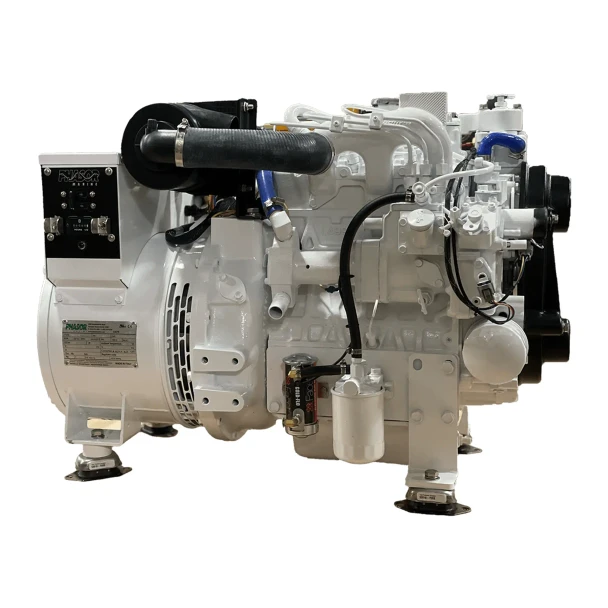

Phasor Marine K3-14.0KW Compact Diesel Boat Generator
The Phasor Marine K3-14.0KW Compact Diesel Boat Generator is a 14kW marine genset built for dependable onboard AC power in a space-conscious footprint. Powered by a Kubota D1503-M-E4BG 3-cylinder diesel engine and running at 1,800 RPM, it delivers 120/240V power for air conditioning, refrigeration, battery charging, galley equipment, lighting, and other onboard electrical needs.
Commonly used on boats approximately 35' to 60'. Final generator sizing should be based on actual onboard electrical load, voltage and phase requirements, air-conditioning start-up demand, installation space, and selected options.
Order the Phasor K3-14.0KW
Use this form when you are ready to purchase.
Pricing: Use the price sheets above.
Key Features
| ✓ | Engine | Kubota D1503-M-E4BG 3-cylinder diesel, 1,800 RPM operation |
| ✓ | Generator End | Single-bearing direct-coupled brushless generator |
| ✓ | Voltage Control | Solid-state voltage regulation rated at +/- 1% |
| ✓ | Cooling / Fuel | Freshwater double-pass heat exchanger, zinc anode, gear-driven raw-water pump, molded silicone hoses, and USCG-approved fuel lines |
| ✓ | Protection | Safety shutdown for high coolant temperature or low lube-oil pressure |
Additional Information
| Model | K3-14.0KW |
| Engine | Kubota D1503-M-E4BG |
| Electric End | Brushless, direct-coupled |
| Output | 14,000 watts - 120/240V |
| Generator Size | 34.5 x 21 x 26" |
| Hard Enclosure Size | 37.5 x 24 x 28" |
| Weight | 649 lb |
| Finish | Awl-Craft 2000 urethane finish |
Built for Reliability
5 Year Limited Warranty
Backed by Phasor Marine warranty coverage.
Load Tested
Completed generators are run off and load tested before leaving Phasor.
Authorized Dealer Support
Seatech Marine Products is an authorized Phasor Marine dealer.
