Seastar HH6543-3 Classic Tilt 2.0 Hydraulic Boat Helm Pump

(1 review) Write a Review
SKU:
HH6543-3
UPC:
HH65433
  • Seastar HH6543-3 Classic Tilt 2.0 Hydraulic Boat Helm Pump
  • Seastar HH6543-3 Classic Tilt 2.0 Hydraulic Boat Helm Pump
  • Seastar HH6543-3 Classic Tilt 2.0 Hydraulic Boat Helm Pump
  • Seastar HH6543-3 Classic Tilt 2.0 Hydraulic Boat Helm Pump
  • Seastar HH6543-3 Classic Tilt 2.0 Hydraulic Boat Helm Pump
DISCONTINUED (see below for options)

Description

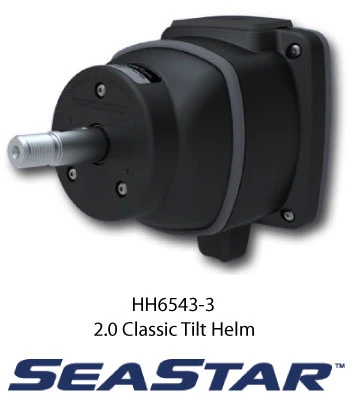

Seastar HH6543-3 Classic Tilt 2.0 Hydraulic Boat Helm Pump

The world's most popular hydraulic boat steering helm (HH65433) offers smooth, efficient no feedback steering for inboard and outboard applications.


Important: Seastar Helm Update to -4

  • DISCONTINUED: You can find the updated HH6543-4 Helm Pump HERE
  • HH6543-4 replaces the HH6543-3, HH6543 and is the direct replacement

Applications:

  • Most Hydraulic Steering applications for inboard/sterndrive/outboard boats up to 50ft.
  • Single outboard engine boats that travel up to 55MPH, for boats over 55MPH see SeaStar PRO Steering.
  • Can be used in multiple stations.
  • Replaces Teleflex Traditional Tilt Helm: HH5743

Features:

  • Compact helm
  • Standard 3/4" tapered steering shaft
  • Accepts wheels up to 20"
  • Small 4.5" Hole cutout in dash

Specification:

  • Front Mount Installation
  • 2.0 cubic inches
  • 1000 PSI Relief Valve Settings
  • Replaces HH6543 - 5 ORB Fittings Instead of 1/4" NPT

What Comes In The Box:

  • HH6543-3 Helm Pump
  • Mounting Hardware
  • HF6004 Fitting Kit 2x ORB-5 90° Re-Positionable elbow fittings

SeaStar HH6543-3 Dimensions:


SEASTAR CLASSIC TILT ARTICULATION (5 POSITIONS 30° UP AND -18° DOWN)


Downloads Section:

SeaStar Boat Helm Pump Installation Manual [PDFSeaStar Marine Hydraulic Steering Selection Guide [PDFSeaStar Marine Steering Catalog [PDF]

CAUTIONS:

  • Do NOT use teflon or loctite on the fittings.
  • Do NOT try to install NPT fittings into helm pump as it may cause damage to the threads.
  • The fluid cap must be in the uppermost position at ALL times.
  • NEVER use brake fluid, only SeaStar Steering fluid or Mil Spec H5606 Fluid.

Installation Notes:

  • The helm pump is packaged with re-positionable o-ring hose fittings (ORB).
  • If a 20° mounting wedge is used, cut out dash as per mounting wedge template and mount helm directly to the 20° wedge.
  • The helm may be mounted with the helm shaft horizontal, vertical, or any angle in between.
  • Install the hose fittings before installing helm pump for ease of installation.

Related Items:


  • HA5430H 1 Quart of SeaStar Fluid
  • HA5438 Helm Bottle Filler Kit (this is not included with a helm pump)
  • HH6544-3 SeaStar 1.4in³ Classic Tilt Helm Pump
