Seastar HH6544-3 Classic Tilt 1.4 Hydraulic Marine Helm Pump

(2 reviews) Write a Review
SKU:
HH6544-3
UPC:
HH65443
Condition:
New

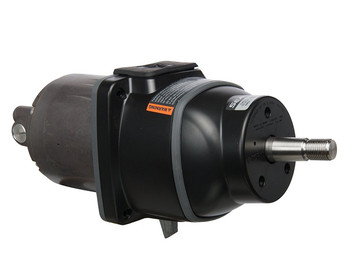

  • SeaStar HH6544-3 Classic Tilt 1.4 Hydraulic Marine Helm Pump
  • SeaStar HH6544-3 Classic Tilt 1.4 Hydraulic Marine Helm Pump
  • SeaStar HH6544-3 Classic Tilt 1.4 Hydraulic Marine Helm Pump
  • Seastar hh6544-3
DISCONTINUED - See Options Below

Description

SeaStar HH6544-3 Classic Tilt 1.4 Hydraulic Boat Helm Pump

The world's most popular hydraulic boat steering helm (HH65443) offers smooth, efficient no feedback steering for inboard and outboard applications.


Important: Seastar Helm Update to -4

  • DISCONTINUED: You can find the updated HH6544-4 Helm Pump HERE
  • HH6544-4 replaces the HH6544-3, HH6544 and is the direct replacement

Applications:

  • Most Hydraulic Steering applications for inboard/sterndrive/outboard boats up to 50ft
  • Single outboard engine boats that travel up to 55MPH, for boats over 55MPH see SeaStar PRO Steering
  • Capable to be used in multiple stations

Features:

  • Compact helm
  • Standard 3/4" tapered steering shaft
  • Accepts wheels up to 20"
  • Small 4.5" Hole cutout in dash

Specification:

  • Front Mount Installation
  • 1.4 cubic inches
  • 1000 PSI Relief Valve Settings
  • Replaces the SeaStar Traditional Tilt Helm HH5741

What Comes In The Box:

  • HH6544-3 Helm Pump
  • Mounting Hardware
  • HF6004 Fitting Kit 2x ORB-5 90° Re-Positionable elbow fittings

SeaStar HH6544-3 Dimensions:




SEASTAR CLASSIC TILT ARTICULATION (5 POSITIONS 30° UP AND -18° DOWN)


Downloads:

  • SeaStar Boat Helm Pump Installation Manual [PDF
  • SeaStar Marine Hydraulic Steering Selection Guide [PDF
  • SeaStar Marine Steering Catalog [PDF]

CAUTIONS:

  • Do NOT use teflon or loctite on the fittings
  • Do NOT try to install NPT fittings into helm pump as it may cause damage to the threads
  • The fluid cap must be in the uppermost position at ALL times
  • NEVER use brake fluid, only SeaStar Steering fluid or Mil Spec H5606 Fluid

Installation Notes:

  • The helm pump is packaged with re-positionable o-ring hose fittings (ORB)
  • If a 20° mounting wedge is used, cut out dash as per mounting wedge template and mount helm directly to the 20° wedge
  • The helm may be mounted with the helm shaft horizontal, vertical, or any angle in between
  • Install the hose fittings before installing helm pump for ease of installation

Related Items:

  • HA5430H 1 Quart of SeaStar Fluid
  • HA5438 Helm Bottle Filler Kit (this is not included with a helm pump)
  • HH6541-3 SeaStar 1.7in³ Classic Tilt Helm Pump
