Hynautic KS-11 - Seal Kit for K-1 Cylinders (KS-11)
KS-11 is a genuine Hynautic cylinder seal kit used to reseal K-1 inboard steering cylinders. Use this kit when servicing a cylinder with seepage at the rod gland, moisture intrusion, or suspected internal bypass due to worn seals.
Compatibility
- Fits: Hynautic K-1 steering cylinders
- How to confirm: Check the cylinder model stamping on the barrel or end cap. If you are unsure, contact Tech Support with photos.
- Qty needed: One (1) kit reseals one (1) cylinder

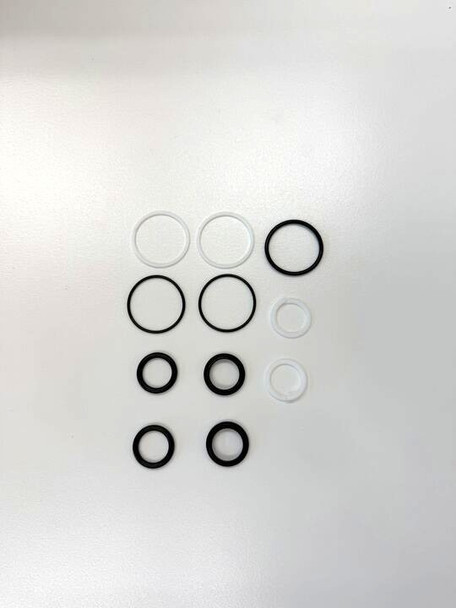

What’s Included
- Seal and O-ring set for one K-1 cylinder
- Rod wiper(s) and backup rings as applicable
- Retaining wire or clip as applicable
Note: Contents can vary slightly by cylinder revision. Reuse of hard parts is expected unless damaged.
Installation Tips
- Protect the rod: Do not clamp on or scratch the polished rod surface - even small nicks can cause immediate leaks.
- Keep everything clean: Dirt in the gland area can cut new seals during reassembly.
- Inspect before reseal: If the rod is pitted or the bore is scored, a reseal may not hold - rebuilding is recommended.
- Lubricate seals: Use a light film of compatible steering/hydraulic fluid during assembly - do not install seals dry.
- Bleed after service: Any air introduced must be fully bled to restore consistent steering feel.
Maintenance Guidelines
- Inspect the rod and gland area periodically for fluid film, salt buildup, and corrosion.
- Keep bilges as dry as practical and rinse salt deposits around the cylinder when accessible.
- If steering feel changes (drift, pull, or frequent correction), verify fluid level and bleed the system before condemning components.
FAQs
Will KS-11 fix internal bypass?
Sometimes. If bypass is caused by worn internal seals and the rod/bore are in good condition, resealing can restore performance. If the bore is scored or corrosion is present, a rebuild is typically the better long-term fix.
How do I confirm I have a K-1 cylinder?
Look for the cylinder model stamped on the barrel or end cap. If it is unreadable, send photos to our Tech Support Page.
Do I need one kit per cylinder?
Yes - one KS-11 kit is intended to reseal one cylinder.
Should I rebuild instead of reseal?
If the rod is pitted, the bore is scored, or the cylinder has chronic leakage, rebuilding is often the most reliable path.
Related Hynautic Cylinder Seal Kits
| Part No. | Fits Cylinder(s) | Notes |
|---|---|---|
| KS-11 | K-1 | This page |
| KS-12 | K-2(B) | K-2 variants |
| KS-13 | K-3 (prior to 4-15-94) | Older K-3 variant kit |
| KS-17 | K-3, K-4, PSK11-12 | Common K-3/K-4 kit |
| KS-15 | K-5(B) | Legacy cylinder kit |
| KS-19 | K-6 | Limited availability |
| KS-08 | K-7 | Legacy cylinder kit |
| KS-09 | K-8 (prior to 4-15-94) | Older K-8 variant kit |
| KS-18 | K-8 and HC5806 applications | Alternate K-8 kit |
| KS-01 | K-11, K-12 | Small inboard |
| KS-02 | K-18, K-19, K-20 | Ball bracket style |
| KS-04 | K-21 to K-29 (pre-1983) | Early cylinders |
| KS-06 | K-21 to K-29 (post-1983) | Later cylinders |
| KS-05 | K-31 | Fixed mount cylinder |
| KS-14 | K-51 | Large inboard |
