SeaStar PA6010 Marine Hydraulic Steering Power Assist and Type 1 AutoPilot Pump 12v 60cu.in.

SeaStar PA6010 Hydraulic Steering Power Assist and Autopilot Pump 12v 60cu.in.

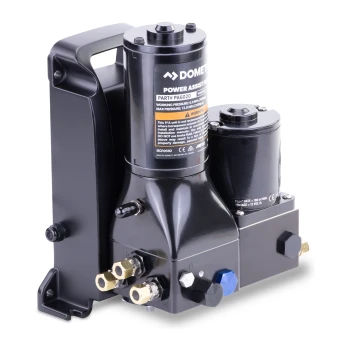

The Dometic SeaStar PA6010 combines the SeaStar PA1200-2 and the Seastar AP1219 to greatly reduce steering wheel torque in manual hydraulic steering in boats and at the same time provide a pump for an autopilot installation. The Dometic Autopilot Pump, when combined with our Power Assist system, makes steering easier when the autopilot is in standby mode. It uses a high efficiency hydraulic gear pump, which produces very little vibration or noise.

In Stock Details: If this part lists as "In Stock"; The PA6010 may come as the Power Assist, AP1219 & HA1205 assembled by a marine tech here in our warehouse. This is the same exact part, only assembled by us and not Dometic. By purchasing this part you are agreeing that you have read and acknowledged.

Choose Model of PA: You have the option to switch out the standard PA1200-2 with either the PA1225-2, this is the PA1200-2 with a 25ft harness, the PA1200-2HP, a Power assist for all Duo Prop Suzuki Outboards or special cases, or the PA1315-2 the PRO power assist, MUST be used with a PRO helm.

Features:

• Outboard and Inboard Applications
• Converts manual hydraulic steering to power steering
• Easy installation in every boat
• OEM or retrofit
• Simple add on to a SeaStar manual hydraulic steering system
• Ignition protected
• Incase of power loss the hydraulic system will automatically revert to a manual hydraulic system

Specifications:

• Voltage: 12V
• Autopilot Pump Size: 60cu.in.
• Wire length: 24"
• Wire Gauge: 12 awg
• Oil compatibility: Seastar steering fluid
• Max PSI: 1000PSI
• Typical current draw: 4-8amps @ 12v
• Bare leads

How the PA6010 Works:

The power system, is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder (this will result in much easier effort at the wheel - even under heavy loads). A compensating line connects the PAA unit to the helm pump, allowing the PAA unit to share fluid with the helm reservoir.

Seastar PA6010 Compatibility:

The PAA is designed for use in recreational marine applications in conjunction with SeaStar hydraulic steering. Optimal performance will be obtained when used with SeaStar 1.4, 1.7 and 2.0 cu in helm pumps.

Downloads and Resources:

• SeaStar PA6010 Installation Manual [PDF]
• SeaStar PA6020 Data Sheet [PDF]
• SeaStar Power Assist Brochure [PDF]
• SeaStar Steering Catalog [PDF]
• SeaStar Hydraulic Steering Selection Guide [PDF]
• Dometic Seastar Hydraulic Build Guide [HERE]

Related Products:

• PA1225-2 PA1200-2 with a 25ft harness
• PA1200-2HP High Power for all duo-prop Suzuki outboards
• PA1315-2 PRO version of the PA1200-2
• AP1219 12v type 1 autopilot pump 60cu.in./min
• HA1205 SeaStar Power Assist retro-fit kit
• HA5430H 1qt SeaStar hydraulic steering fluid
• Seastar Hose
• Seastar Helm Pumps
• Seastar Cylinders

Power Assist & Auto Pilot Combo:

• PA6010: Power Assist w/AP1219 12v Type 1
• PA6020: Power Assist w/AP1233 12v Type 2
• PA7010: Power Assist w/AP2419 24v Type 1
• PA7020: Power Assist w/AP2433 24v Type 2
