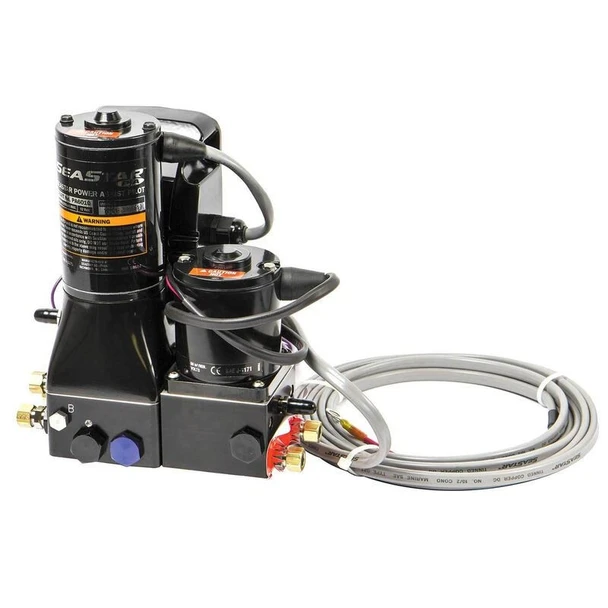

Seastar PA7020 Marine Hydraulic Steering Power Assist and Type 2 AutoPilot Pump 24v 110cu.in.

SeaStar PA7020 Marine Hydraulic Steering Power Assist and AutoPilot Pump 24v 110cu.in.

The SeaStar PA7020 combines the SeaStar PA1200-2 and the Seastar AP2433 to greatly reduce steering wheel torque in manual hydraulic steering in boats and at the same time provide a pump for an autopilot installation.

In Stock Details: If this part lists as "In Stock"; The PA7020 will comes as the PA1200-2, AP2433 & HA1205 assembled by a marine tech here in our warehouse. This is the same exact part as a PA7020, only assembled by us and not Dometic. By purchasing this part you are agreeing that you have read and acknowledged.

Choose Model of PA:  You have the option to switch out the standard PA1200-2 with either the PA1225-2, this is the PA1200-2 with a 25ft harness, the PA1200-2HP, a Power assist for all Duo Prop Suzuki Outboards, or the PA1315-2 the PRO power assist, MUST be used with a PRO helm.

Features:

• Outboard and Inboard Applications
• Converts manual hydraulic steering to power steering
• Easy installation in every boat
• OEM or retrofit
• Simple add on to a SeaStar manual hydraulic steering system
• Ignition protected
• Incase of power loss the hydraulic system will automatically revert to a manual hydraulic system

Specifications:

• 24V
• Autopilot pump size: 110cu.in.
• Wire length: 24"
• Wire Gauge: 12 awg
• Bare leads
• Oil compatibility: Seastar steering fluid
• Weight: 5lbs
• Max PSI:1000PSI
• Typical current draw: 3-6amps @ 24v

How the SeaStar PA7020 Works:

The power system, is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder (this will result in much easier effort at the wheel - even under heavy loads). A compensating line connects the PAA unit to the helm pump, allowing the PAA unit to share fluid with the helm reservoir.

SeaStar PA7020 Compatibility:

The PAA is designed for use in recreational marine applications in conjunction with SeaStar hydraulic steering. Optimal performance will be obtained when used with SeaStar 1.4, 1.7 and 2.0 cu in helm pumps.

Downloads & Resources:

• SeaStar PA7020 Installation Manual [PDF]
• SeaStar PA7020 Data Sheet [PDF]
• SeaStar Power Assist Brochure [PDF]
• SeaStar Steering Catalog [PDF]
