Sidepower SH240/250TC-U16 Thruster Unit w/Parker Ultra motor 16cm3, max. thrust 240kg/528lbs

(No reviews yet) Write a Review
SKU:
SH240/250TC-U16
Condition:
New
$0.00
Typically Ships in 1-2 Business Days

Description

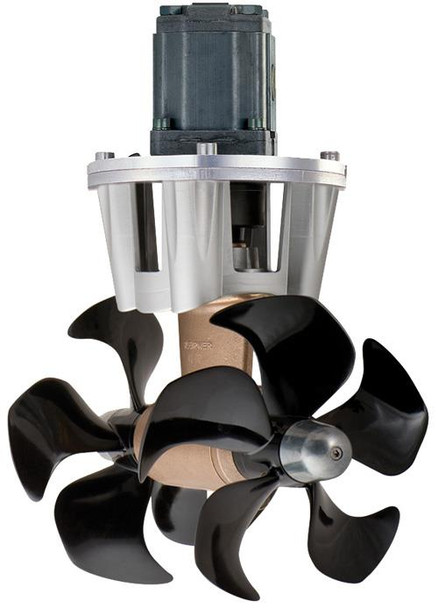

Side-Power SH240 Hydraulic Thruster with Parker Ultra Motor 16cm3, Max. Thrust 240kg/528lbs, Sealed Gearleg, Twin Counter Rotating 5-Bladed Q-Props

Side-Power's SH240 hydraulic thruster features twin counter rotating five bladed Q-Props, maximizing thrust from less hydraulic power.  The thruster produces 528 lbs. of thrust at 100% performance. Side-Power hydraulic thrusters can be purchased as part of a complete hydraulic system.

A complete Side-Power engineered system allows full proportional control of the thruster and unlimited run time, all based on the S-Link plug and play system.  Learn more about Side-Power hydraulic thruster systems.  Contact your local Side-Power representative for a system tailored to your needs.



Features & Benefits

  • Wide range of hydraulic motor sizes and types to optimize performance of the thruster unit
  • Unlimited run time at any thrust level, including max thrust
  • Reduced long term maintenance when compared to DC or AC thrusters
  • Improved maaximum thrust based on tunnel size
  • Total integration into any hydraulic system or supplied as part of a Side-Power engineered system

Performance

  • Propulsion technology know-how, maximizing amount of thrust from the system
  • Lightweight composite propellers reduce work needed to get up to speed and stop rotation
  • Streamlined gear housing, reducing turbulence in the tunnel and maximizing flow

Installation

  • Compact size to reduce the amount of interior volume needed
  • Simple Plug and Play wiring
  • Easily accessible hose connections
  • Fast and safe propeller mounting with lock nut
  • GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
  • Easy access zinc anodes allow quick and simple changing
  • Sealed gearleg so no messy oil fill-ups needed during installation

Safety and Reliability

  • Mechanical protection of drive gear through flexible coupling between gearleg and motor
  • Control panels have child-safe On system and timed shut down from last use
  • 2 year limited warranty
Light Duty Thrust up to 528 lbs (240 kg)
Heavy Duty Thrust up to 440 lbs (200 kg)
Tunnel Diameter 9.83" (250mm)
Propulsion System Twin Counter Rotating
Hydraulic Power 19.8hp(14.8kW)
Motor Size 16cm³ (0.97 in.³)
Manufacturer Side-Power
Pump Output 23.3hp(17.4kW)
Typical Boat Size 42-75' (13-23m)
Required Pressure 208bar(3017psi)
Required Flow 50lpm(13.2gpm)
Min Depth to Top of Tunnel 4.92" (125mm)
Min Depth to Center of Tunnel 9.84" (250mm)
