Sidepower SH160/215T-U06 Thruster Unit with Parker Ultra Motor 6cm3, Max Thrust 160kg/352lbs

(No reviews yet) Write a Review
SKU:
SH160/215T-U06
Condition:
New
$0.00
Typically Ships in 1-2 Business Days

Description

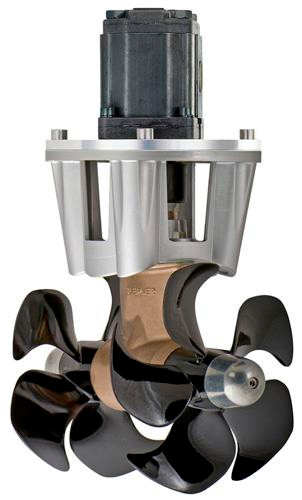

Side-Power SH160 Hydraulic Thruster with Parker Ultra Motor 6cm3, Max. Thrust 160kg/352lbs, Sealed Gearleg, Twin 5-Bladed Q-Props

Side-Power's SH160 can be installed as a bow or stern thruster, allowing improved control of the vessel.  The five blade Q-Props are designed to maximize thrust from the given tunnel size while reducing noise.  The thruster is typically part of a Side-Power engineered hydraulic system; however, it can be matched to an existing hydraulic system.

A complete Side-Power engineered system allows full proportional control of the thruster and unlimited run time, all based on the S-Link plug and play system.  Learn more about Side-Power hydraulic thruster systems.  Contact your local Side-Power representative for a system tailored to your needs.



Features & Benefits

  • Wide range of hydraulic motor sizes and types to optimize performance of the thruster unit
  • Unlimited run time at any thrust level, including max thrust
  • Reduced long term maintenance when compared to DC or AC thrusters
  • Improved maaximum thrust based on tunnel size
  • Total integration into any hydraulic system or supplied as part of a Side-Power engineered system

Performance

  • Propulsion technology know-how, maximizing amount of thrust from the system
  • Lightweight composite propellers reduce work needed to get up to speed and stop rotation
  • Streamlined gear housing, reducing turbulence in the tunnel and maximizing flow

Installation

  • Compact size to reduce the amount of interior volume needed
  • Simple Plug and Play wiring
  • Easily accessible hose connections
  • Fast and safe propeller mounting with lock nut
  • GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
  • Easy access zinc anodes allow quick and simple changing
  • Sealed gearleg so no messy oil fill-ups needed during installation

Safety and Reliability

  • Mechanical protection of drive gear through flexible coupling between gearleg and motor
  • Control panels have child-safe On system and timed shut down from last use
  • 2 year limited warranty
Light Duty Thrust 352 lb (160 kg)
Heavy Duty Thrust 308 lb (140 kg)
Typical Boat Size 35-62' (11-19 m)
Tunnel Diameter (I.D.) 8.46" (215 mm)
Propulsion System Twin, 5-bladed Q-Props
Hydraulic Power 13.4hp(10kW)
Motor Size 6cm³ (0.36cm³)
Manufacturer Side-Power
Pump Output 15.4hp(11.5kW)
Required Pressure 277bar(4018psi)
Required Flow 25lpm(6.6gpm)
Min Depth to Top of Tunnel 6.38" (162mm)
Min Depth to Center of Tunnel 12.72" (323mm)
View AllClose

Warranty Information

Seatech Marine Products is an authorized dealer for Sleipner (Sidepower). They cover products with a 2 year pleasure or 1 year commercial limited warranty. Visit Sleipners website for full information: https://www.sleipnergroup.com/support/faqs
