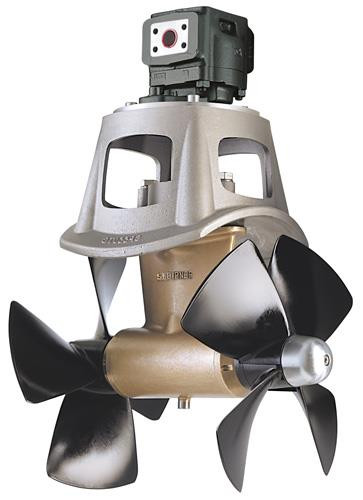

Sidepower SH550/386TC-B45 Thruster Unit w/Bent Axis Piston-Type motor 45cm3, max. thrust 550kg/1210lbs

(No reviews yet) Write a Review
SKU:
SH550/386TC-B45
Condition:
New
For your low price, use the "Request Special Pricing" form below
Typically Ships in 1-2 Business Days

Description

Sidepower SH550/386TC-B45 Thruster Unit w/Bent Axis Piston-Type motor 45cm3, max. thrust 550kg/1210lbs

The Side-Power SH550 hydraulic thruster with twin counter rotating four-bladed propellers produces 1210 lbs of thrust at 100% performance. Side Power hydraulic thrusters can be purchased as part of a complete hydraulic system.

To receive Special Pricing on this unit, please click on the Request Special Pricing form below, or call (619) 222-9613.


Features & Benefits

  • Wide range of hydraulic motor sizes and types to optimize performance of the thruster unit
  • Unlimited run time at any thrust level, including max thrust
  • Reduced long term maintenance when compared to DC or AC thrusters
  • Improved maximum thrust based on tunnel size
  • Total integration into any hydraulic system or supplied as part of a Side-Power engineered system

Performance

  • Propulsion technology know-how, maximizing amount of thrust from the system
  • Lightweight composite propellers reduce work needed to get up to speed and stop rotation
  • Streamlined gear housing, reducing turbulence in the tunnel and maximizing flow

Installation

  • Compact size to reduce the amount of interior volume needed
  • Simple Plug and Play wiring
  • Easily accessible hose connections
  • Fast and safe propeller mounting with lock nut
  • GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
  • Easy access zinc anodes allow quick and simple changing

Safety and Reliability

  • Mechanical protection of drive gear through flexible coupling between gearleg and motor
  • Control panels have child-safe On system and timed shut down from last use
  • 2 year limited warranty
Light Duty Thrust up to 1210 lbs. (550 kg)
Heavy Duty Thrust up to 1200 lbs. (500 kg)
Typical Boat Size 85-140' (25-40m)
Tunnel Diameter 15.2" (386 mm)
Propulsion System Twin Counter Rotating, 4-bladed Props
Hydraulic Power 48.8hp(36.4kW)
Motor Size 45cm³ (2.75 in.³)
Manufacturer Side-Power
Pump Output 55.4hp(41.3kW)
Required Pressure 249bar(3611psi)
Required Flow 100lpm(26.4gpm)
Min Depth to Top of Tunnel 11.42" (290mm)
Min Depth to Center of Tunnel 22.79" (579mm)
