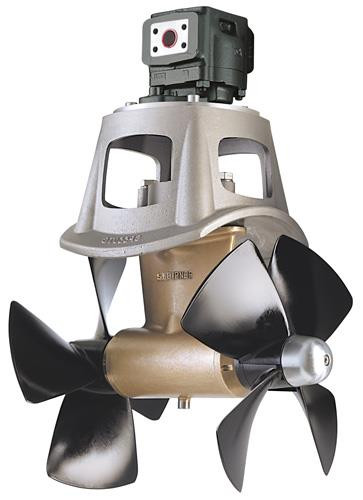

Sidepower SH550/386TC-P42 Thruster Unit w/Parker Ultra motor P-42cm3, max. thrust 550kg/1210lbs

(No reviews yet) Write a Review
SKU:
SH550/386TC-P42
Condition:
New
$0.00
Typically Ships in 1-2 Business Days

Description

Side-Power SH550 Hydraulic Thruster with Parker Ultra Motor P42cm3, Max. Thrust 550kg/1210lbs, Twin Counter Rotating 4-Bladed Props


The Side-Power SH550 hydraulic thruster with twin counter rotating four-bladed propellers produces 1210 lbs of thrust at 100% performance. Side Power hydraulic thrusters can be purchased as part of a complete hydraulic system.

A complete Side-Power engineered system allows full proportional control of the thruster and unlimited run time, all based on the S-Link plug and play system.  Learn more about Side-Power hydraulic thruster systems.  Contact your local Side-Power representative for a system tailored to your needs.



Features & Benefits

  • Wide range of hydraulic motor sizes and types to optimize performance of the thruster unit
  • Unlimited run time at any thrust level, including max thrust
  • Reduced long term maintenance when compared to DC or AC thrusters
  • Improved maaximum thrust based on tunnel size
  • Total integration into any hydraulic system or supplied as part of a Side-Power engineered system

Performance

  • Propulsion technology know-how, maximizing amount of thrust from the system
  • Lightweight composite propellers reduce work needed to get up to speed and stop rotation
  • Streamlined gear housing, reducing turbulence in the tunnel and maximizing flow

Installation

  • Compact size to reduce the amount of interior volume needed
  • Simple Plug and Play wiring
  • Easily accessible hose connections
  • Fast and safe propeller mounting with lock nut
  • GRP and composite bolt-on stern thruster tunnel kits pre-drilled for ease of installation
  • Easy access zinc anodes allow quick and simple changing

Safety and Reliability

  • Mechanical protection of drive gear through flexible coupling between gearleg and motor
  • Control panels have child-safe On system and timed shut down from last use
  • 2 year limited warranty
Light Duty Thrust up to 1210 lbs. (550 kg)
Heavy Duty Thrust up to 1200 lbs. (500 kg)
Typical Boat Size 85-140' (25-40m)
Tunnel Diameter 15.2" (386 mm)
Propulsion System Twin Counter Rotating, 4-bladed Props
Hydraulic Power 58.1hp(43.3kW)
Motor Size 42cm³ (2.56 in.³)
Manufacturer Side-Power
Pump Output 65.2hp(48.6kW)
Required Pressure 271bar(3931psi)
Required Flow 108lpm(28.5gpm)
Min Depth to Top of Tunnel 11.42" (290mm)
Min Depth to Center of Tunnel 22.79" (579mm)
