Zipwake 450S ZW2011146 Trim Control System Kit

(No reviews yet) Write a Review
SKU:
ZW2011146
UPC:
450 S
Condition:
New
  • Zipwake 450S ZW2011146 Trim Control System Kit
  • Zipwake 450S ZW2011146 Trim Control System Kit
For your low price, use the "Request Special Pricing" form below
In Stock - Ships FREE within 24hrs M-Thu

Description

Zipwake Box 450S ZW2011146 Dynamic Trim Control System Kit

Offered by Seatech Marine Products, Zipwake is an economical Dynamic Trim control System. Zipwake 450S phases out the trim issues of planing & semi-planing boats ranging from 20-50 feet. Zipwake heightens fuel economy, comfort, performance & safety as you accelerate, turn and run in a seaway. The kit includes everything you'll need to install your new Zipwake system. You can further your speed and control with up to two additional pairs of interceptors.


Features:

  • Fully automatic and active trim control system.
  • Built-in GPS, 3D-Gyro, and 3D-Accelerometer in each control panel.
  • Ideal for boats ranging from 20-50 feet (6-15 meters). See Series E for boats 50-100 Feet.
  • 5-10 times faster than conventional trim tab systems.
  • Minimizes wave resistance and reduces fuel consumption by 10-12%
  • Allows system integration for external devices through the NMEA 2000 network.

Includes:

  • (2) Interceptors. Width: 450mm
  • (1) 3m Cable & Cable Covers
  • (1) Distribution Unit with 4m power cable
  • (1) Control Panel with 7m standard cable
  • (1) Extension cable

Specifications:

  • Certified for CE & FCC
  • Max Boat Speed is 60 knots
  • Blade stroke is 1.2" or 30mm
  • Blade Rate is 0.8 in/s or 20mm/s
  • The Thru Hull Cable Fitting can be Concealed or Above the Waterline
  • Servo Actuator is SU-S
  • The Cable Material is PUR
  • The Cable Length is 10 feet or 3 meters, extendable up to 20 feet or 6 meters
  • The Connector is M12 5-pin Circular, the Diameter is 0.57" or 14.5mm
  • The Voltage is 12-32VDC
  • Power Consumption max is 25W
  • Ingress Protection is IP68, 15' or 5 meters
  • The Operating Temperature ranges from 32F to 104F or 0C to 40C
  • The Storage Temperature ranges from -40F to 194F or -40C to 90C

Not sure what Zipwake System you need?

Zipwake Kit size is determined by many factors including: the type of boat you have, the length, and the size of the back of your vessel among other details. Fill out our questionnaire below and receive a determination by a Zipwake tech.

  1. Fill out the questionnaire here: Zipwake Questionnaire
  2. Send the PDF along with a photo of the aft of your vessel (above the waterline) to info@imtra.com
  3. Circle back around to purchase the kit Imtra recommends, use our Request Special Pricing form.

Learn more about Zipwake:

Downloads:

Also available in:

E Series for boats in length of 50-100 feet:

Questions?


  • No Sales Tax on Purchases Outside of California
  • FREE Ground Shipping to the Contiguous 48 States
  • Sleipner, formerly known as SidePower, is distributed by Imtra in North America

International Customers: We Ship Worldwide, Shipping Cost May Quote Too High on Our Web Site, contact us for a quote.

View AllClose

Videos Hide Videos Show Videos

Related Products

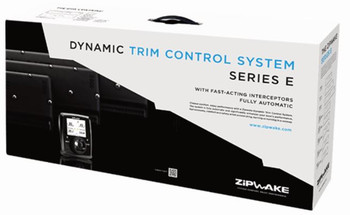

Zipwake 400 E ZW2012213 Trim Control System Kit
