Description
FALKON 1700W 12V - Horizontal Electric Windlass LW500AN
The FALKON horizontal electric windlass is ideal for large crusing vessels ranging from 43' - 59' that anchor frequently with heavy offshore chain ground tackle.
Standard Equipment:
- Watertight Control Box
- Two (2) Footswitches
- Chainwheel
- Manual Override w/Handle
Specifications:
| Power Supply | 12V |
| Motor Wattage | 1700W |
| Power Rating (lbs) | 2600 |
| Finish | Anodized |
| Approx. Amp Draw | 90-135 |
| Max Retrieval Speed (ft./min.) | 60 |
| Chain Size | 5/16", 3/8", 7/16", 1/2" |
| Rope Size | 1/2", 3/4" (Rope Drum) |
Features:
| Finish | Anodized |
| Motor | Dual Direction, Series Wound |
| Gearbox | Stainless Worm Drive |
| Gears | Bronze |
| Mainshaft | Stainless |
| Chainpipe | Stand-Alone w/Adj. Stripper |
| Chain Stripper | Stainless |
| Mounting Hardware | Insultated Bushings Only |
| Manual Override | Standard |
| Rope Capstan | Standard |
Downloads:
Click here to view the Lofrans Falkon LW500AN Owners Manual PDF
Click here to view the Lofrans Chainwheel Chart
Click here for the Lofrans Falkon Parts Breakdown

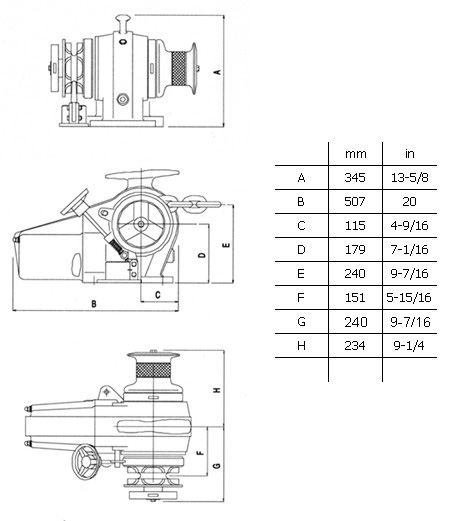

Click here for the LW500AN Dimensional Diagram
Click here to view the 3 Terminal Wiring Diagram
Click here to view Lofrans Gearbox Oil Capacity Guide
Click here to view the Lofrans Master Parts List
Click here to view Imtra's Anchoring Windlasses Product Catalog
Replacement part information
Keep the original part number LW500AN when checking compatibility. The supplier identifies the following replacement references:
Replacement choice can depend on size, voltage, system version or additional components. Confirm compatibility before ordering.
