FALKON 1700W 24V - Horizontal Electric Windlass LW500AN/1

(No reviews yet) Write a Review
SKU:
LW500AN/1
UPC:
LW500AN/1
  • FALKON 1700W 24V - Horizontal Electric Windlass LW500AN/1

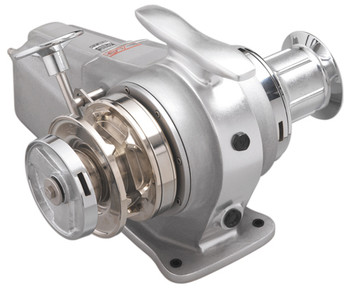

  • Lofrans - Falkon - LW500AN/1
  • LW500AN/1 Dimensional Drawing
  • 3 Terminal Wiring Diagram
Call for Special Pricing. (866) 456-1379
Use our STOCK INQUIRY Page for Price & Availability

Description

FALKON 1700W 24V - Horizontal Electric Windlass LW500AN/1

The FALKON horizontal electric windlass is ideal for large crusing vessels ranging from 43' - 59' that anchor frequently with heavy offshore chain ground tackle.

Standard Equipment:

  • Watertight Control Box
  • Two (2) Footswitches
  • Chainwheel
  • Manual Override w/Handle

Specifications:

Power Supply 24V
Motor Wattage 1700W
Power Rating (lbs) 2700
Finish Anodized
Approx. Amp Draw 50-70
Max Retrieval Speed (ft./min.) 60
Chain Size 5/16", 3/8", 7/16", 1/2"
Rope Size 1/2", 3/4" (Rope Drum)

Features:

Finish Anodized
Motor Dual Direction, Series Wound
Gearbox Stainless Worm Drive
Gears Bronze
Mainshaft Stainless
Chainpipe Stand-Alone w/Adj. Stripper
Chain Stripper Stainless
Mounting Hardware Insultated Bushings Only
Manual Override Standard
Rope Capstan Standard

 Downloads:

Click here to view the Lofrans Falkon LW500AN/1 Owners Manual PDF

Click here to view the Lofrans Chainwheel Chart

Click here for the Lofrans Falkon Parts Breakdown

Click here for the LW500AN/1 Dimensional Diagram

Click here to view the 3 Terminal Wiring Diagram

Click here to view Lofrans Gearbox Oil Capacity Guide

Click here to view the Lofrans Master Parts List

Click here to view Imtra's Anchoring Windlasses Product Catalog
