Seastar PA1200-2HP Marine Hydraulic Power Assist Steering Unit 12V/24V High Pressure

SeaStar PA1200-2HP Marine Hydraulic Power Assist Steering Unit - 12V/24V High Pressure

The Dometic SeaStar Power Assist PA12002HP is a gear pump that is electronically controlled and added to the hydraulic steering circuit between the helm and steering cylinder. The (HP) model is specifically for all duo-prop Suzuki Outboards and some vessels with very high horsepower. The fluid that is circulated by the helm pump enters the power assist and is directed through the gear pump to the steering cylinder(s). The helm serves as the control element for speed and direction, while the P/A serves as the working element that adds power to the steering fluid. The helm pump controls the pump speed, so the faster you turn the wheel, the faster the gear pump will run. When you're not steering, the P/A is stopped, and it only draws standby power.

Applications:

• Duo-pro Suzuki Outboards
• Rare cases of vessels with very high horsepower, Contact Dometic Seastar if you believe the HP pump will suit your application.

Features & Benefits:

• Dramatically Increases steering comfort
• Reduced wheel effort
• Simplified installation - Simple "add-on" to existing SeaStar manual steering system
• Auto recognize system voltage 12V or 24V
• Number of turns lock to lock remains constant
• Compatible with SeaStar Power Purge System
• Compatible with marine autopilots
• Mounting bracket included - wall or floor mount
• Wiring harness included

Specifications:

• Input Voltage: 12 or 24VDC (Automatically recognized)
• Max PSI Rating: 1000PSI
• Typical Current Draw: ~3 Amps
• Max Current Draw: 50A Max, 60A Peak (1A System electronics)
• Fluid Compatibility: SeaStar Steering Fluid HA5430H or MIL Spec H5606QT
• Harness Length: 15'
• Warranty: 2 Years

Tools Required:

• 1/2" and 3/4" Open-ended Wrench
• Wire Cutters, crimpers, soldering iron
• Screwdriver for attaching mounting plate

Downloads & Resources:

• SeaStar Power Assist Product Sheet [PDF]

• Power Assist Installation Instructions [PDF]
• Power Assist Fill and Purging Instructions [PDF]
• SeaStar Steering Catalog [PDF]
• SeaStar Hydraulic Steering Selection Guide [PDF]
• Dometic Seastar Hydraulic Build Guide [HERE]

Power Assist & Auto Pilot Combo:

• PA6010: Power Assist w/AP1219 12v Type 1
• PA6020: Power Assist w/AP1233 12v Type 2
• PA7010: Power Assist w/AP2419 24v Type 1
• PA7020: Power Assist w/AP2433 24v Type 2

Related Products:

• PA1225-2 PA1200-2 with a 25ft harness
• PA1200-2 Standard PA1200-2
• PA1315-2 PRO version of the PA1200-2
• AP1219 12v type 1 autopilot pump 60cu.in./min
• HA1205 SeaStar Power Assist retro-fit kit
• HA5430H 1qt SeaStar hydraulic steering fluid
• Seastar Hose
• Seastar Helm Pumps
• Seastar Cylinders

Typical Power Assist Application for an Outboard or Inboard Boat Overview:

PA1200-2HP Dimension Diagram:

Questions?

• Tech Support: Tech Support Page
• Check Stock: Stock Inquiry Page
• Request a Shipping Quote: Request Quote Page

• No Sales Tax on Purchases Outside of California
• Buy Now Pay Later with Affirm or PayPal Pay Later
• FREE Ground Shipping to the Contiguous 48 States

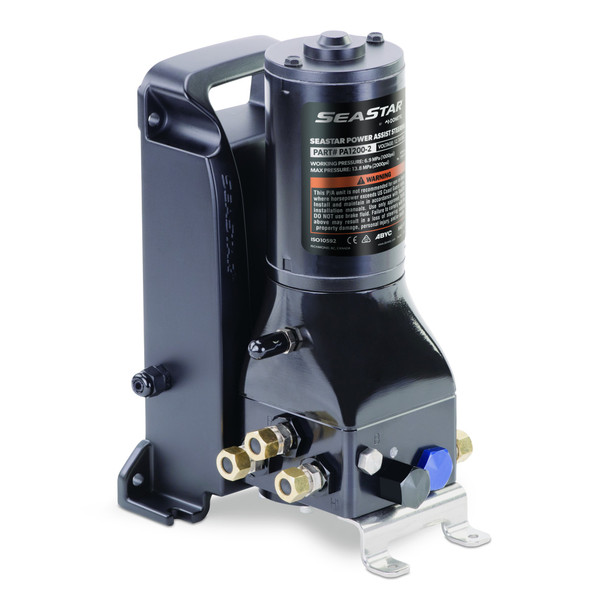

• Image shows a PA1200-2
