Description
KOBRA - Horizontal Electric Windlass LW375AN
The KOBRA horizontal electric windlass is ideal for boats ranging from 26' to 46'. Lofrans Windlasses compact size and vertically insatlled motor is ideal for crowded foredecks and limited space. LW375AN
Standard Equipment:
- Watertight Control Box
- (2)Footswitches
- Chainwheel
- Manual Override w/Handle
| Power Supply | 12V |
| Motor | 1000W Dual Direction, Permanent Magnet |
| Power Rating (lbs) | 1900 |
| Finish | Anodized |
| Working Load | 220 lbs (100 kg) |
| Approx. Amp Draw | 70-120 |
| Amperes @ Working Load | 115 |
| Max Retrieval Speed (ft./min.) | 75 |
| Retrieval Speed @ Working Load | 59 ft/min (18 m/min) |
| Chain Size | 1/4", 5/16", 3/8" |
| Rope Size | 1/2"-3/4" (Rope Drum) |
Downloads:
Click here to view the Lofrans Dorado LW375AN Owners Manual PDF
Click here to view the Lofrans Chainwheel Chart
Click here for the Lofrans Kobra Parts Breakdown

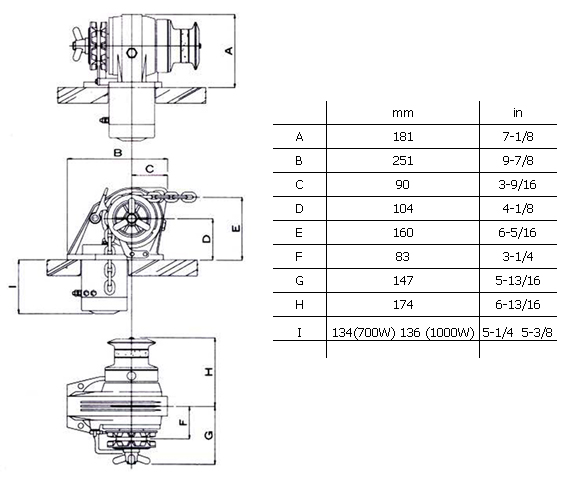

Click here for the LW375AN Dimensional Diagram
Click here to view the 3 Terminal Wiring Diagram
Click here to view Lofrans Gearbox Oil Capacity Guide
Click here to view the Lofrans Master Parts List
Click here to view Imtra's Anchoring Windlasses Product Catalog
Click here to view the 3 Terminal Wiring Diagram
Click here to view the Lofrans Dorado LW375AN Owners Manual PDF (Post 2009)
Click here to view the Kobra 2 Terminal Wiring Diagram (Post 2009)
Replacement part information
Keep the original part number LW375AN when checking compatibility. The supplier identifies the following replacement references:
Replacement choice can depend on size, voltage, system version or additional components. Confirm compatibility before ordering.
