Description
ROYAL - Horizontal Manual Windlass LW250AN
The ROYAL horizontal manual windlass is ideal for boats ranging from 26' - 39'. A manual windlass is often considered an ideal choice for boats with eletrical limitations, infrequent anchoring, or budet considerations. Easy to install, the ROYAL windlass makes ancohring a quick and simple task.
Features & Specifications:
| Version | Horizontal Manual |
| Power Rating (lbs) | 440 |
| Finish | Anodized |
| Standard Equipment | Chainwheel & Manual Override Handle |
| Retrieval Speed @ No Load | Manual |
| Retrieval Speed @ Working Load | Manual |
| Max. Deck Thickness | N/A |
| Chain Size | 1/4", 5/16", 3/8" |
| Rope Size | 1/2"-3/4" |
Downloads:
Click here to view the Lofrans Royal LW250AN Owners Manual PDF
Click here to view the Lofrans Chainwheel Chart
Click here for the Lofrans Royal Parts Breakdown

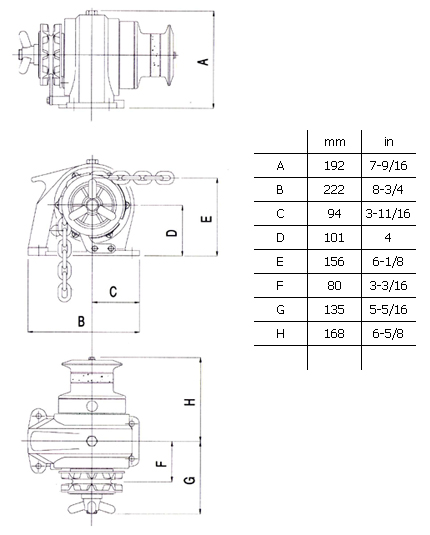

Click here for the LW250AN Dimensional Diagram
Click here to view Lofrans Gearbox Oil Capacity Guide
Click here to view the Lofrans Master Parts List
Click here to view Imtra's Anchoring Windlasses Product Catalog
Replacement part information
Keep the original part number LW250AN when checking compatibility. The supplier identifies the following replacement references:
Replacement choice can depend on size, voltage, system version or additional components. Confirm compatibility before ordering.
