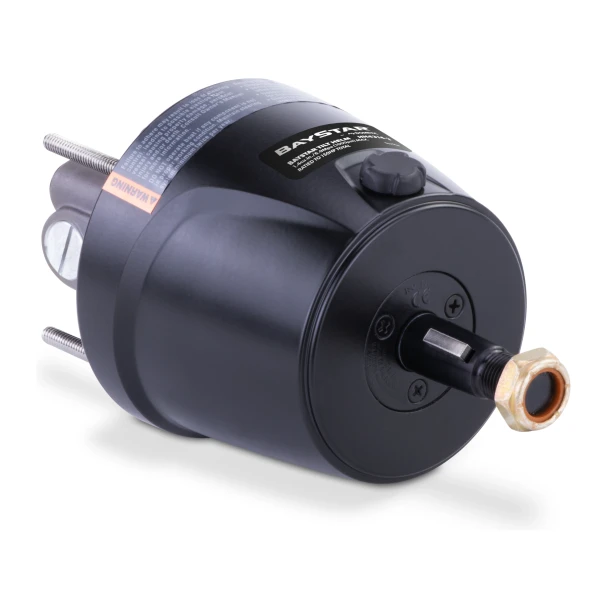

Seastar HH4314-3 Baystar Front Mount 1.4 Standard Marine Hydraulic Steering Helm Pump

Seastar HH4314-3 Baystar Front Mount 1.4 Standard Marine Hydraulic Steering Helm Pump

The Baystar HH4314-3 supersedes and replaces the HH4314, HH4514, and HH4016 BayStar helms. If replacing the HH4016, new holes must be drilled as this utilizes four mounting studs and not three. Dometic is the most trusted name in pleasure boat steering. The Dometic BayStar Front Mount Helm allows you to install all of the safety, reliability and comfort of hydraulic steering in boats rated up to 150 hp.

Important: BayStar Helm Update to -4

• DISCONTINUED: You can find the updated HH4314-4 Helm Pump HERE
• HH4314-4 replaces the HH4314-3, HH4314 and is the direct replacement

Features:

• Superior overall performance
• Fits most splash wells
• Low friction
• Comfortable Steering
• Rigid ISO quality control

Specifications:

• Bs Helm 1.1 Fm Orb
• For use in applications up to 150 hp
• 1.4 Cubic Inches
• Horse Power Rating 150.00 hp
• 1000.00 psi
• Fluid displacement 1.40 in³
• 28.00 "
• Front Mount
• Operating temperature min -18.00 °C
• Operating temperature max 77.00 °C

Dimensions:

• Dimensions product depth 8 "
• Net weight 7.60 lbs

Downloads & Resources:

• BayStar Front Mount Helm Installation Manual [PDF]
• BayStar Fill and Bleed + Troubleshooting Guide [PDF]
